PCB equipment hot wind SMT Reflow Oven , reflow oven machine with 8 heating zone

PCB equipment hot wind SMT Reflow Oven , reflow oven machine with 8 heating zone
PCB equipment hot wind SMT Reflow Oven , reflow oven machine with 8 heating zone

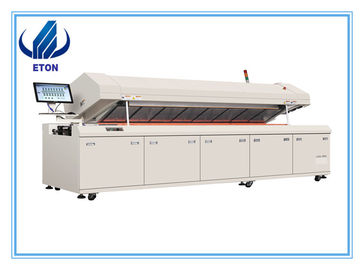

Large Image :  PCB equipment hot wind SMT Reflow Oven , reflow oven machine with 8 heating zone

Product Details:
Place of Origin: Shenzhen,China
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: 8 zones
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD12000~15000USD per Unit
Packaging Details: Standard export wooden case package(Can do as customers' requirement)
Delivery Time: Within 15 days after receive the downpayment
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability: 30 UNIT per month
Detailed Product Description
Application:: Reflow Soldering Oven Machine Infrared Reflow Soldering Oven/reflow Soldering Oven SMT Hot Air Convection 8 Heating Zone Mesh Speed: 0-1.8M/MIN
Temperature Accuracy: ±1℃ Heating Up Time: <25min
Apply Solder Paste Type: Lead-free Solder/Ordinary Solder Applicable Components Type: BGA,CSP Etc.single/double Sided
Power Comsumption: 120W/220AC 50HZ
High Light:

smt reflow soldering

,

reflow soldering machine


Product Description:

SMT LED machine,SMT LED pick and place machine,LED light production machine,LED light assembly machine



1.Features:





Features:



1) Dimension: 4800*1200*1450(mm)

2) Starting total power: 45KW, Normal: 7KW

3) Controlled temperature zones : up 8 heating Zones, down 8 heating zones, 2 cooling zone

4) Heating length: 3000MM

5) Temp.Accuracy: ±1℃

6) PCB Temp.Deviation: ±2℃

7) Heat up time: <25min

8) Mesh speed: 0-1.8M/MIN

9) Mesh height: 900±20mm

10)Mesh width: 480 mm

11)PCB Size: W350 mm

12)Apply solder paste type: Lead-free solder/Ordinary solder;

13)Applicable components type: BGA,CSP etc.single/double sided;

14)Power protect: UPS;

15)Control Method: Full computer control;

16)Furnace using jacking cylinder;







2.Our Services



Technical support

  1. From the date of purchase, two years of free repairs and maintenance;
  2. Providing technical updates and technical services at any time;
  3. The software system will be upgraded for a lifetime to ensure the latest and full features of the software version for free.
  4. Provide technical training service according to customer’s requirements.
  5. Can choose freely different feeding board ways and feeder bases.





Service Support



1.From the date of purchase, enjoy 24-hour service

2.make phone calls or on-site visits to customers non-scheduled , improve constantly according to the customer's requirements.

3.Guarantee to the expiration date, free to provide customers with Secure service
