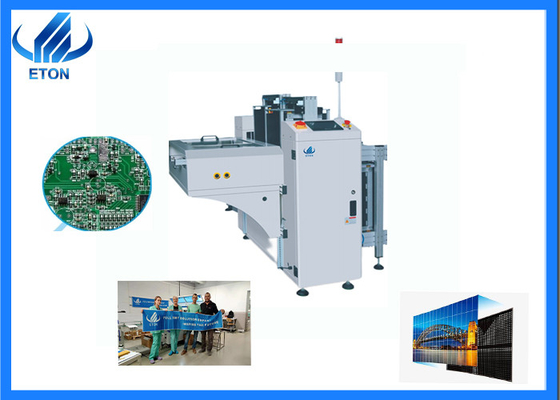

Double track loader machine
Technical parameters
| Item | Double track loader machine |
| Dimension | L1500*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Yadak pneumatic clamp |
| 0.6M long push plate Conveyor | 1 set |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Lift platform pitch selection | 10,20,30,40, 50 |
| Operation control panel | Taiwanese joint venture display control touch screen |
| power supply | Single phase 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
