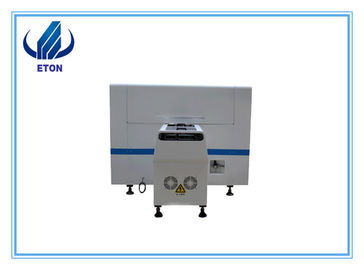

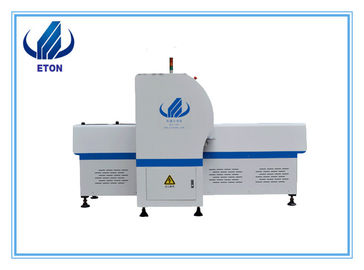

capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine

capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine
capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine

Large Image :  capacity reach 170000 CPH, HT-XF pick and place machine,17 nozzles for each mounting With SMD Mounting Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-XF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $75,000-76,000 / Units
Packaging Details: Standard export package(It also can be adjusted according to customer's requirement)
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 2700*1900*1530 Mm Total Weight: 1300 KG
PCB Thickness: 0.5-5 Mm Mounting Speed: 150000-170000 CPH
Air Force: 0.5 Mpa Power Consumption: 5 KW
High Light:

smd pick and place machine

,

smd led mounting machine

Company Information



Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.

photobank (10).png

Quality Principle:

Quality First, Client-oriented,

Continuous Improvement!

Product Description



Features

Double module professional high speed mounter

Apply to the 0.6M,0.9M,1.2M LED hard board 0.5M, 1M LED soft lamp strip 17 nozzles for each mounting part, part A of B can be mounted separately of synchronously.

Correction automatically, high precision, available for RGB

Global first technology patent: counterfeiting not allowed

IPC 9850 Capacity:150000-170000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0



Technical Data

Dimension Length 2700MM
Width 1900MM
Height 1530MM
Total Weight 1300kg
PCB PCB length width Max:330*1200 mm Min:80*120 mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 34PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 150000-170000CPH(optimum)
Components LED 3017/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23℃±3
Conveyor Transmission Max Length:1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Air consumption <100 L/min
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor control for X, Y, Z axies.



Packaging & Shipping



We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.

photobank (11).png

Our Services



Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.

Buyer Feedback






Many high speed mounter—one reflow oven.



photobank (17).jpg



FAQ

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.

Contact me



Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.



If you are interested in our products, please feel free to contact me and I will be happy to answer any questions you have!
