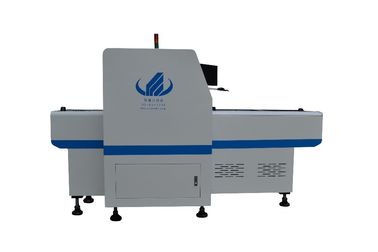

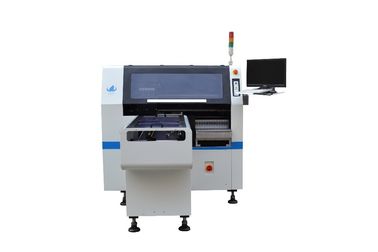

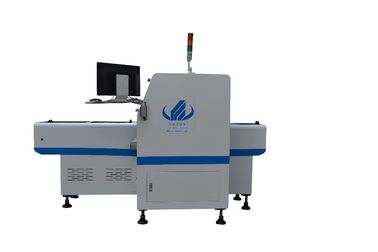

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM
220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM

Large Image :  220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-E6T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $45000 - 46000 / Unit
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 2550*1650*1600 MM Total Weight: 1200 KG
PCB Length Width: Max 1200*350 MM Mounting Speed: 30000 CPH
Power Supply: 220 AC 50 HZ No.of Nozzles: Single Module.totally 8
High Light:

smd assembly machine

,

smd pick and place machine

Product Description:

Multi-functional SMT Machine,Create the lowest-cost patch plan

Features

Single module multi-functional mounter.
Mounting parts: LED,capacitors,resistors,IC,shaped components,etc.
Applicable to vibration feeding system for lens.
Apply to tube, driver, bulb, strip, lamp, panel, ceiling light, down light, screen display, street light etc.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, MARK correction
Auto-optimization feature after coordinates generated, etc.



Technical Parameter

Create the lowest-cost patch solution for better cooperation with you

PCB Length Width Max.:1200mm*350mm Min.:50mm*50mm
PCB Thickness 0.5~5mm
PCB Clamping Adjustable Pressure Pneumatic
Mounting Mode Group picking and placing separately, taking separately and placing separately
System Windows 7
Software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
No. of Camera 2 sets of imported camera/Vision for the flight identification + Mark correction
Repeat mounting Precision ±0.02mm
Mounting Height <15mm
Mounting Speed 30000CPH
Components LED,IC, capacitors, resistors, shaped components etc.
Components Space 0.2mm
No. of Feeders 1*20PCS
No. of nozzles Single module, totally 8
Power 220AC 50HZ
Power Consumption 4KW
Operating Environment 23℃±3℃
Conveyor Transmission Max Length:1.2m
Transmission Speed >500mm/sec.
Transmission Direction single (left→right or right→left)
Transmission Mode Online
Position Mode Optical
Air Pressure >5.0kg/cm2
Air Consumption <200L/min.
Electrical Control Research and Develop Independently by ETON
Motion Control Card 1 sets Research and Develop Independently by ETON
X,Y Axies Driving Servo motor
Feeding Way Electronic Feeder




Packaging& Shipping

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 0
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment


Faith ful cooperation, win –win future!
Excellent After-sale Service.
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 1

Company profile

Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 2
Complete packing, guaranteed with latest product display.

220AC Smd Led Pick And Place Machine E6T-1200 Conveyor Transmission Max Length 1200MM 3

FAQ

Q:Quality Principle
We stick to quality first, client-oriented, Continuous improvement!
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
