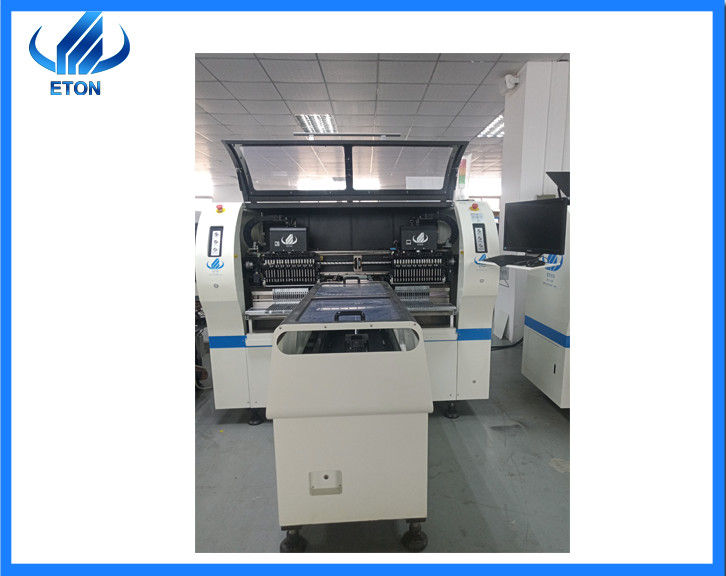

Dual-Purpose professional high-speed mounter

Dual-Purpose professional high-speed mounter
Dual-Purpose professional high-speed mounter

Large Image :  Dual-Purpose professional high-speed mounter

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: HT-XF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 75000 USD
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Total Weight: 1300 Kg Max PCB: 330*1200 Mm
Min PCB: 90*120 Mm System: Windows 7
Precision: 0.02 Mm Capacity: 150000-170000 Cph
Name: Smt Machine Warranty: One Year
High Light:

smt pick and place equipment

,

smt mounter machine

Dual-Purpose professional high-speed mounter



(KEYWORD:High-speed mounter/High-production SMT machine/LED Light Pick and Place Machine)



Brand: ETON Warranty: 1 year
Model: HT-XF Origin: CHINA
The Machine type:Pick and Place Machine



Faetures:



Dual-Purpose professional high-speed mounter

the capacity reach 170000 CPH

Apply to the 0.6m, 0.9m, 1.2m LED rigid PCB and 0.5m, 1m flexible strip.

17 nozzles for each mounting modul, part A or part B can be mounted separatly or synchronously.

Exclusive patent technology: Group to pick and group to mount.

Components: LEDLED3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.



Technical parameter:



HT-XF Double module Technical Parameter
Dimension
Length 2700mm
Width 1900mm
Height 1530mm
Total Weight 1300kg
PCB
PCB Length Width Max:330*1200mm Min:90*120mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
Vision System
No. of camera

5 Sets of imported camera

Vision alignment, MARK correction

Mounting precision ±0.02mm
Mounting Height <15mm
Mounting Speed 150000-170000CPH
Power 220AC 50Hz
Power Consumption 5KW
Conveyor Transmission                       Max Length:1200mm
Transmission Speed >500mm/sec
Air pressure >5.0Kg/ CM²
Electrical control Independent research and development by ETON
X.Y.Z Axis Driving servo motor

Product show

Dual-Purpose professional high-speed mounter 0

Display:

LED monitor

Input Device:

Keyboard, Mouse







Dual-Purpose professional high-speed mounter 1



Feeding way: Electric feeder with double motor

Dual-purpose professional high-speed mounter , the capacity reach 170000CPH



Attention:



1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.



Logistics and delivery:



Transport: By sea/Train/Airplane
Packing:               Wooden box with vacuum package
Lead Time: Four weeks after payment
