Product Details:
Payment & Shipping Terms:
|
| Application: | SMT Production Line | Dimension: | L2520*W1120*H1200mm |
|---|---|---|---|
| Structure: | Pneumatic Clamp Structure | Maximum Size Of PCB: | (L)525*(W)460mm |
| Power Supply: | 220V 50HZ | Name: | SMT Mounting Machine |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

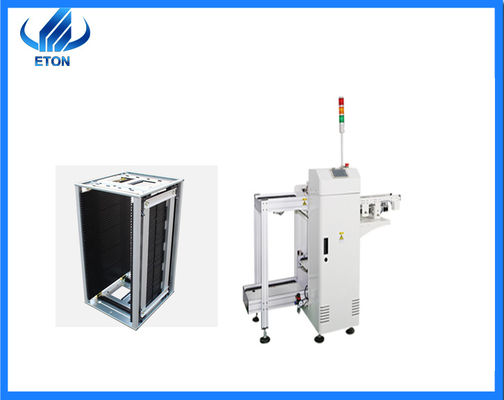

ET-UL460 unloader machine
Inportant Parameter:
| Item | ET-UL460 unloader machine |
| Dimension | L2520*W1120*H1200mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Pneumatic clamp structure |
| 0.6M long push plate Conveyor | 1 set |
| Turnover box specifications | (L)535*(W)530*(H)565mm |
| Maximum size of PCB | (L)525*(W)460mm |
| Direction | Left to right / right to left |
| Lift platform pitch selection | 10,20,30,40 |
| Controller | Mitsubishi PLC programmable controller |
| Closing function | Automatic |
| Operation control panel | Display control true color touch screen |
| power supply | 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| No. of Full load storage board | 50 pcs |
| Electric control box | 1 set |
Suitable for smt production line:
ET-UL460 support max pcb 525*460mm, it can support the same pcb board size placement machine.
With loader machine, reflow soldering, pick and place machine, printing machine form a fully automatic smt production line.
Good performance:
Our service:
We offer pre-sale, in-sale and after-sales services. At any stage, we will do our best to satisfy our customers.
Before the sale, we will meet the needs of customers in product design and product promotion.
In the sale, we will explain the product knowledge in detail, product details and stickers, so that customers know more about our products.
After the sale, we will do a series of work such as delivery, warranty, commissioning.
Exihibition:
Our company participates in five or six exhibitions every year. Take 18 years of data as an example:
Our company:
Shenzhen ETON automatic equipment co., ltd set up in 2011, around 8 years history. We focus on smt technology reach and development, have our core technology. We are manufacture of smt mounting machine, procide the machines of a smt production line.
