Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Total Weight: | 1200kg | System: | Windows7 |
| Dimension: | 1650*1200*1570mm | Visual Camera: | 2 Sets Of Imported Camera |
| Power Consumption: | 4KW | Software: | R&D Independently |
| PCB Length Width: | Max：500*350mm | Speed: | 40000CPH |
| Power: | 380AC 50HZ | ||
| High Light: | smt pick and place machine,smt pick and place equipment |
||

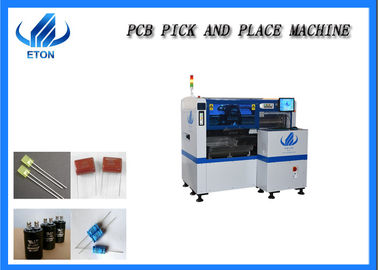

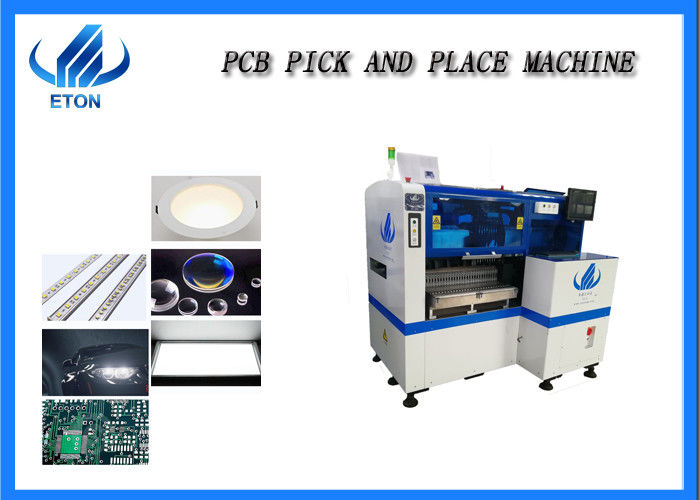

Single magnetic linear motor multifunctional pick and place machine
HT-E5S led bulb making machine,It is can mounting capacitors,resistors,IC,shaped components,etc.apply to power driver.electric board.lens.linear bulb.household appliance etc.
HT-E5S led bulb making machine,The maximum size of PCB board is 500*350mm, the minimum size is 100*100mm, and the thickness of PCB board is 0.5~3mm. it adopted the technology of Group to picking and separate to placing ,Separate to picking and separate to placing.
HT-E5S led bulb making machine Vision system: vision for the flight identification ,mark correction with 5 sets of imported camera.
| HT-E5S led machine lighting | ||
| PCB | PCB length width | Max:500*350mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting mode |
Group to picking and separate to placing Separate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 30PCS |
| No.of nozzles | 8PCS | |
| Feeding way | Electric feeder with double motor | |
Logistics and delivery
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.ETON has created superior value for customers as the outstanding worldwide brand of high speed SMT machine with good reputation .looking forward to the future ,we believe that ETON will seek to better achievement in SMT field and make greater contributions to the industry and society.
Project case and partners
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
1.Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3.What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5. Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
