Product Details:
Payment & Shipping Terms:
|
Condition: | New | Name: | Full-automatic Printer |
---|---|---|---|
Product Name: | ET-F400 | PCB Maximum Size: | 400*340MM |
Dimension: | 1220(L)X1355(W)X1500(H)MM | Weight: | 1000KG |
High Light: | stencil printer machine,automatic screen printing machine |

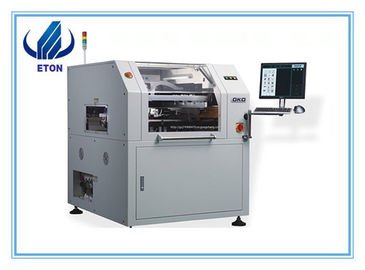

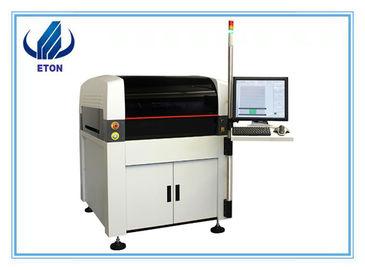

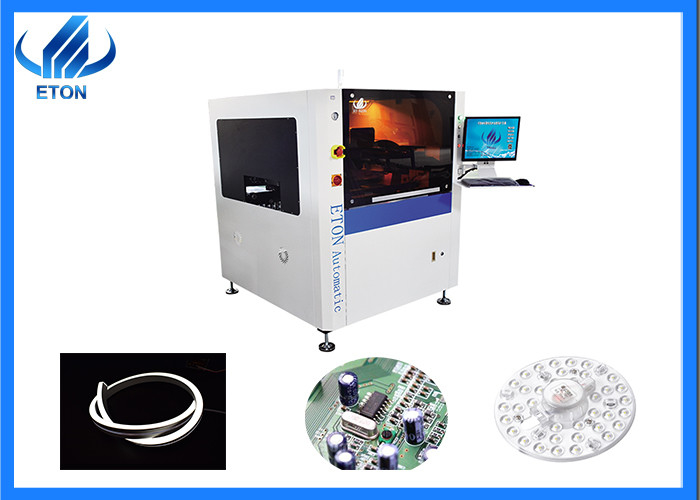

Eton Automatic Printer Machine LED SMT Production Line Machine
Product Functions:
ET-F400 a high accuracy printing robot designed for high precision screen printing or stencil printing in SMT industry.
Product Features:
i. Support spectrums of PCB sizes from 50mm x 50mm to 400mm x 340mm and PCB thickness from 0.4mm to 6mm.
ii. High printing accuracy
1. High positioning accuracy, repeated positioning accuracy ±0.01mm; printing accuracy ±0.025mm.
2. Support glue printing
iii. Automatic control improves production efficiency, quality control and cost saving:
1. Automatic stencil positioning
2. Automatic PCB calibration
3. Programmable squeegee pressure
4. Automatic printing
5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
Technical Parameters
|
Model | ET-F400 |
Item | ||
Screen Frames | Min Size | 370X370mm |
Max Size | 737X737mm | |
Thickness | 25~40mm | |
PCB Min Size | 50X50mm | |
PCB Max Size | 400X340mm | |
PCB Thickness | 0.4~6mm | |
PCB Warpage | <1% | |
Transport Height | 900±40mm | |
Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | |
Transport Speed | Max 1500mm/S Programmable | |
Board Location P |
Support System | Magnetic Pin/Up-down table adjusted/supportblock by hand |
Clamping System | side clamping,vacuum nozzle | |
Print head | Two independent motorised printheads | |
Squeegee Speed | 6~200mm/sec | |
Squeegee Pressure | 0~15Kg | |
Squeegee Angle | 60°/55°/45° | |
Squeegee Type | Stainless steel(Standard), plastic | |
Stencil Separation Speed | 0.1~20mm/sec Programmable | |
Cleaning System | Dry,Wet,Vacuum (Programmable) | |
Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° | |
Machine | ||
Repeat Position Accuracy | ±0.01mm | |
Printing Accuracy | ±0.025mm | |
Cycle Time | <7s (Exclude Printing & Cleaning) | |
Product Changeover | <5Min | |
Air Required | 4.5~6Kg/cm2 | |
Power Input | AC:220±10%,50/60HZ 1Φ 3KW | |
Control Method | PC Control | |
Machine Dimensions | 1220(L)X1355(W)X1500(H)mm | |
Machine Weight | Approx:1000Kg |
