Product Details:
Payment & Shipping Terms:
|
| Function: | Automatically Send Board | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | ||
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

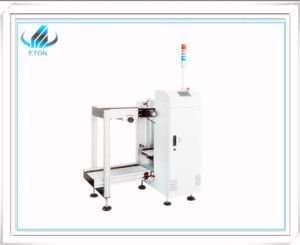

ET-DL send board machine
The product description
This equipment is used for SMT and AI production line PCB feeding operation
PLC control system, real color touch screen control
Auxiliary positioning brake system, accurate positioning, fast lifting speed, high production efficiency
Multiple electrical distribution circuit protection, safe and reliable
Sound and light prompt alarm system, easy to operate and maintain
Compatible with SMEMA interface
| Item | Double track send board machine |
| Dimension | L1100*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Yadak pneumatic clamp |
| 0.6M long push plate Conveyor | 1 set |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Lift platform pitch selection | 10,20,30,40, 50 |
| Operation control panel | Taiwanese joint venture display control touch screen |
| power supply | Single phase 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
Our Company
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption”in the world,meanwhile ETON also the largest high-tech manufacturer in Chine with strong capability of design,R&D,manufacturing,sales&service,and rates as “Shenzhen high-tech enterprise”“China high-tech enterprise”“Shenzhen TOP Brand”“2015LED Technology Innovation Award”“The 4th China LED First Innovation Award”“Industry Special Contribution Award”“Double soft enterprise”etc.
Successful Experien
1) Eton's customer in 25 countries around the world Training more than
2) 300 experts and technician for customers.
3) Became the most reliable Chinese partner for you.
Packing Method
Vacuum wooden package
Shipping Way
By air;
By sea, for large package and quantity;
Other ways as customer requested.
Delivery Time
15~30 Days
