| Name: | Pick And Place Machine | Speed: | 40000CPH |
|---|---|---|---|
| PCB Length Width: | Max：500*350mm | Dimension: | 1650*1200*1570mm |
| Power: | 380AC 50HZ | Total Weight: | 1200kg |
| Driver Way: | High-end Magnetic Linear Motor/servo Motor | System: | Windows7 |
| High Light: | smt pick and place equipment,high speed led mounting machine |
||

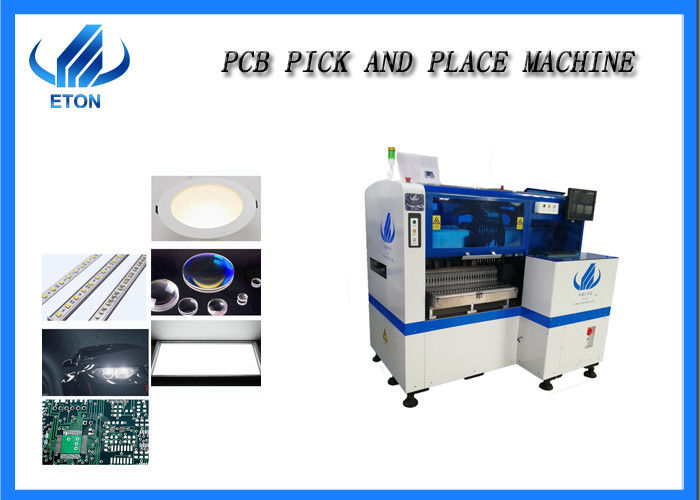

magnetic linear motor multifunctional pick and place machine:single module
features
1.Single module manetic linear motor multifunctional pick and place machine
2.Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3.Application: power driver.electric board.lens.linear bulb.household appliance etc.
4.Component:min.size 0402 max.height 36 mm.
| Technical parameter | ||
| PCB | PCB length width | Max:500*350mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping +adjustable pressure pneumatic | |
| Mounting mode |
Group to picking and separate to placing Separate to picking and separate to placing
|
|
| O.S. | system | Windows7 |
| software | R&D independently | |
| display | LED monitor | |
|
Vision system |
Visual camera |
2 sets of imported camera Vision for the flight ide3ntification,mark correction |
| Mounting precision | 0.02mm | |
| Mounting height | <36mm | |
| Transmission direction | Single (left to right or right to left) | |
| Drive way | High-end magnetic linear motor +servo motor | |
| Feeding system | Feeders station | 30PCS |
| nozzles | 8PCS | |
| Feeding way | Electric feeder with double motor | |
Patented technology
1. Electronic feeder feeding system: high stable,
2. Vision alignment flight identification,mark correction:high Accuracy
3. Non-stop material re-loading function:high speed
4. Auto-optimization after coordinates generated ,etc.
Application
components:
LED,capacitors,resistors,IC,shaped components,etc.
Application:
Power driver,electric board,lens,linear bulb,household appliance etc;street light,tube,bulbs,downlight.
After sales service
1.Maintenance period: 1 year.
2.Visit customers regularly and gather information.
3.Provide latent information about technology and equipment.
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
What is the length of the playable PCB?
Max:500*350mm min:100*100mm
Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
