Product Details:
Payment & Shipping Terms:
|
Name: | Pick And Place Machine | Warranty: | 1 Year |
---|---|---|---|
Place Of Origin: | China | Power: | 380AC 50HZ |
Mounting Height: | <36mm | Visual Camera: | 2 Sets Of Imported Camera |
High Light: | smt pick and place equipment,smt assembly machine |

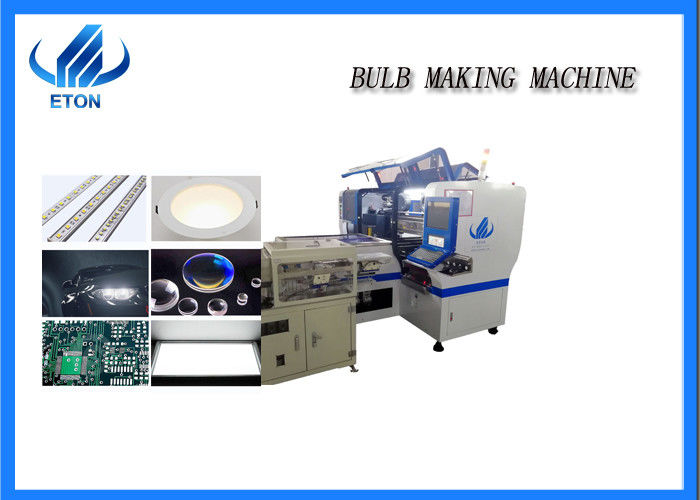

High Accuracy High Efficiency fast Excellent service led making machine
details
Dual module high performance universal magnetic linear motor multifunctional high speed mounter pick and place machine, with very low material loss rate, can realize high speed PCB board handling, save the time of getting in and out of the board, the unique flight identification visual alignment system, to achieve high stability and high precision, not stop material re-loading and coordinate automatic generation function, save time.
Technical parameter | |
PCB | |
PCB length width | Max:1200*300mm min:100*100mm |
PCB thickness | 0.5~5mm |
PCB clamping | Adjustable pressure pneumatic |
O.S. | |
system | Windows7 |
software | R&D independently |
display | Touch screen monitor |
input | Keyboard mouse |
Feeding system | |
No. of feeders station | Dual mode ,totally 40 |
No.of nozzles | Dual mode,totally 16 |
Feeding way | Electric feeder with double motor |
Product features
1. Platform drive adopts panasonic servo motor from Japan, and lead screw with linear guide rail to ensure the stability and control accuracy of platform movement.
2. The X and Y axis adopt high-end magnetic linear motors to ensure the high accuracy, speed and stability of the patch.
3. 16 high-speed heads work at the same time, greatly improving the cost performance of the equipment. Suction head movement, high precision, long durability.
4. Simple and easy to understand graphical programming, greatly improve the convenience of operation, automatic visual positioning to assist positioning, positioning accurate and convenient.
5, the use of industrial computer + independent special controller control, system stability, simple operation, easy to learn.
6. The software is powerful, and the programming coordinates are displayed in digital and graphical ways, so it is convenient to adjust and change the coordinates. The progress and components of the patch are displayed graphically in the production process, and the subsidy materials are convenient.
7. The software adopts the database system, different kinds of PCB programming can be stored, easy to call, new product programming, lifelong call.
8. The negative pressure detection system is adopted to accurately detect the suction material and effectively prevent the material leakage and throwing.
8. Optional: 8mm, 12mm, 16mm and 24mm automatic feeder; Different suction nozzle
After-sale Service
lwe will send our engineer to your factory to install machine and training freely.
lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
