Product Details:
Payment & Shipping Terms:
|
| Color: | Blank And Blue | CPH: | 200000 |
|---|---|---|---|
| PCB Length: | 1200*330mm~80*330mm | PCB Thickness: | 0.5~1.5mm |
| No.of Camera: | 5 Sets Of Imported Camera | Feature: | Dual-arm Four Modul |
| High Light: | high speed led mounting machine,smt assembly machine |
||
HT-F9

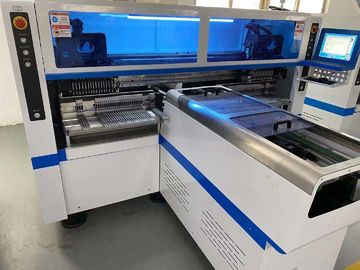

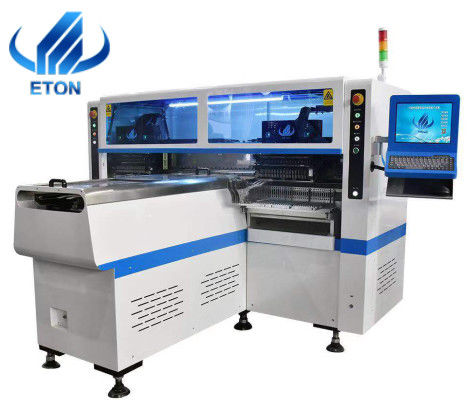

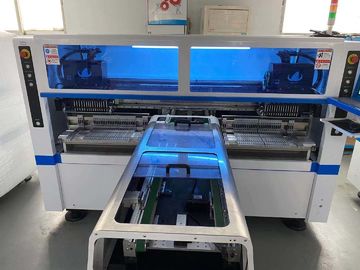

Dual-arm magnetic levitation LED highspeed pick and place machine, mount 2~4 materials at the same time,capacity reach 200000 CPH.
Features
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with2~4 types of materials with high capacity, avaliable for board with any proportion of LED chip and resistor.
Dual-arm four modul, 17 nozzles for each mounting part, partA/B/C/D can be mounted separatly or synchronously.
Exclusive patent technology:Group to take and group to mount.
Technical parameter
| HT-F9 | |
| Length*Width*Height | 2700*2120*1550mm |
| Total Weight | 1400KG |
| PCB Length Width | Max:1200*330mm Min:80*330mm |
| PCB Thickness | 0.5~5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| No.of Camera | 5 sets of imported camera |
| Mounting Height | <13mm |
| Mounting Speed | 200000CPH |
| Components | LED3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| No.of Feeders Station | 68PCS |
| No.of nozzles | 68PCS |
| Power | 380AC 50Hz |
| Power Consumption | 6KW |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+servo motor |
| Display | Touch screen monitor |
About us
Shenzhen ETON Automation Equipment Co., Ltd.is a leading manufacturer of pick and place machine focusing on ” High efficiency Low consumption ” in the world. Meanwhile ETON is also the largest high-tech manufacturer in China with stronger capability of design,R&D, manufacturing, sales&service.
We have 8-year experience in SMT machine, with unique understanding of SMT technology, we provide long-term professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.We will continue to make great efforts to satisfy the customers' requirement.
Q&A
1.What can you provide?
We provide full SMT solution for you
How is your company?
Our company ETON is the largest manufacturer of high-speed pick&place machine in China. We start from 2011, around 8 years. We are professional in SMT area.
Project cases
How is the warranty?
We provide 1 standard wanranty, during warranty any non-intentional damage will be repaired free of charge.
4.Who is your client?
We have exported machine to different countries like Eygpt, Korea, Turkey, Brazil,etc. Such as FSL, ETI, KONKA, OPPLE, MLS are our clients. In india such as RK, Surya, Skyquad are our clients .
Honours clients
5.What’s your package?
Our packing method is vacuum wooden case packing. Supporting sea, air and land transportation.
