Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Total Weight: | 1250kg |
|---|---|---|---|
| Feeders: | 26 PCS | PCB Thickness: | 0.5~5 Mm |
| Dimension: | 2550*1650*1550mm | PCB Size: | 1200*350mm |
| Warranty: | 1 Year | ||
| High Light: | high speed led mounting machine,smt assembly machine |
||

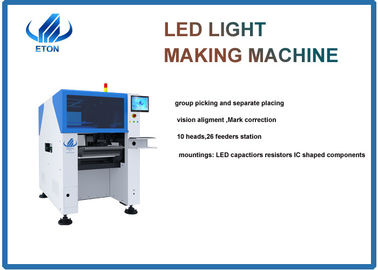

10 heads pick and place machine r&d indepently smd led making machine
details

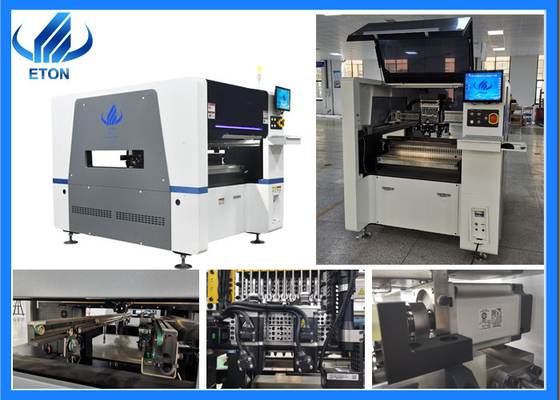

RT-1 is a high accuracy, multi-function, on-line automatic pick and place machine, the machine use ten mounting heads, equipped with high-precision components recognition system, on-line produce
RT-1 is a high accuracy, multi-function, on-line automatic pick and place machine, the machine use ten mounting heads, equipped with high-precision components recognition system, on-line production, RT-1 independent research and development the machine operation system with Chinese and English both, simple and convenient use, can be widely used in all kinds of LED lamps, LED drivers, small appliances, circuit boards, digital products, all kinds of control panels, and so on.
reference configuration
1. Control system: industrial computer + precision motion control card + touch display
2. Software system: ETON independently develops the Chinese and English operating systems
3. Sport motor: panasonic original motor and high-end magnetic linear motor
4. Mount suction nozzle: independently developed several types of suction nozzle
5. Sliding device: precision screw rod
6.Visual device: MARK point recognition, imported high precision visual camera
7. Feeder: high-speed electric feeder
8. Feeding mode: double motor electronic feeder
| RT-1 pick and place machine | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
Logistics and delivery
| packing | |
| 1.Filming packing | Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity. |
| 2.vacuum packing | Advantages of moistureproof, dustproof and so on |
| 3.wooden packing | It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions. |
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
