Name: | SMT Pick And Place Machine | Module: | RT-1 |
---|---|---|---|
Apply: | SMT LINE | Components: | Led,resistor, Ic, Shaped Components |
Warranty: | One Year | Service: | Free Install And Traning |
Brand: | ETON | Office: | SHENAZHEN, INDIA, TURKEY |
SMT PICK AND PLACE MACHINE FOR BIG COMPONENTS
ETON SMT pick and place machine
ETON smt pick and place machine is very multifunction and high speed. Suitable for mounting LED, capacitor, resistors, ic, shaped components, etc. The highest speed can be reach 200000 cph.
SMT equipment operator job responsibilities
1. According to the squad leader's transfer plan, make pre-production preparations in advance, such as materials, solder paste, steel mesh, etc .;
2. According to the squad leader's arrangement, do a good job of PCB printing and post-printing inspection;
3. Strictly implement the solder paste / red glue storage and use control process;
4. Strictly implement steel mesh cleaning specifications;
5. In the production process, it is responsible for loading, refilling, and matching of the machine, filling in the refilling record form and sealing the sample, and notifying IPQC to confirm the loading and refilling;
6. Confirmation of the first piece of production, whether there are missing stickers, reverse, etc., fill in the first piece and send the inspection form to notify IPQC to confirm the first piece again;
The future of SMT pick and place machine
Specifically, the SMT placement machine has undergone three generations of development, from the early low speed (1-1.5 seconds / piece) and low precision (mechanical centering) to high speed (0.08 seconds / piece) and high precision (optical Centering, automatic placement machine with placement accuracy of ± 60um / 4q). The first-generation placement machine does not have visual recognition devices, precision servo system, automatic board feeding and automatic nozzle change function, only the stepping multi-axis system with low accuracy; the second-generation placement machine has visual recognition function, placement The number of heads has also been expanded from two to more, and the XY axis system with automatic transmission and imported servo technology can also be imported; the third-generation placement machine has a higher level of improvement, such as device identification and placement optimization functions, and the Z axis height is adopted Precise servo technology to meet the thickness detection and replenishment of different devices and IC, high-precision placement, the third-generation placement machine is actually a precision industrial robot, composed of computers, optics, precision machinery, ball screws , Linear guide rails, linear motors, harmonic drives, and high-tech electromechanical equipment consisting of vacuum systems and various sensors.

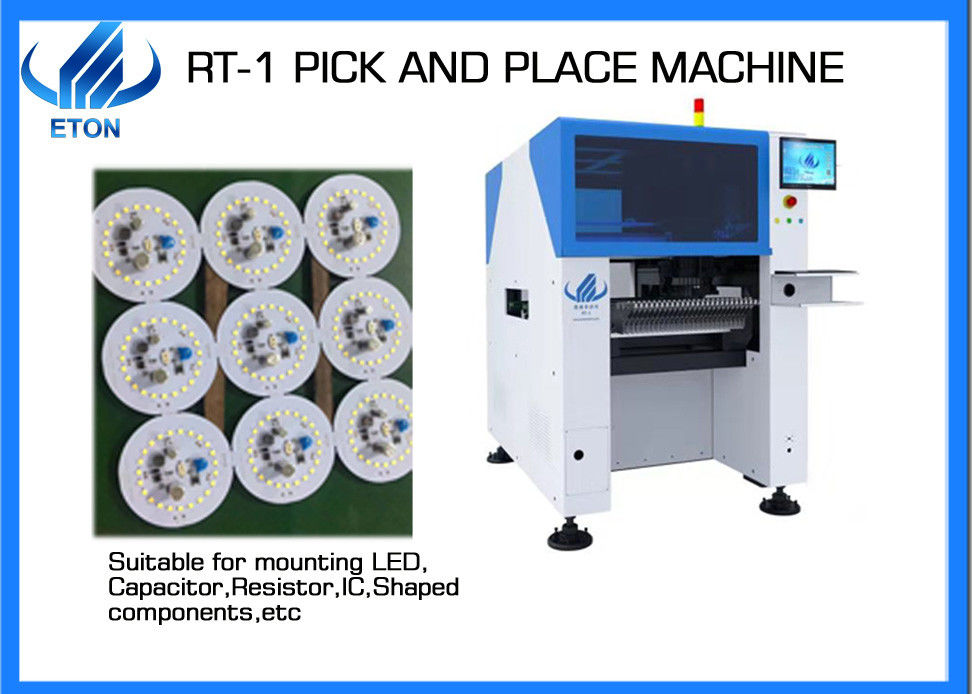

RT-1 Multifunction pick and place machine
RT-1 as the multifunctional machine, it is suitable for LED bulb, display, power driver, DOB, etc.
The capacity can be reach 40000 ch
The number of feeder station is 32 pcs
The number of nozzles is 10 pcs
Contact manufacturer
If you want to have a good project in smt line, please contact us:
