LED downlight for shaped components middle speed pcb light making machine
details

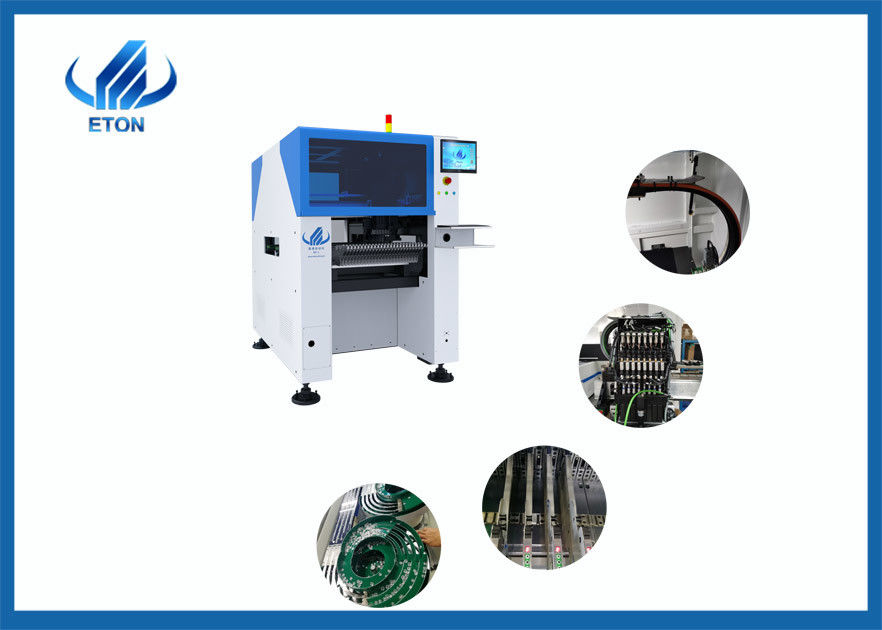

RT-1 is a high accuracy, multi-function, on-line automatic pick and place machine, the machine use ten mounting heads, equipped with high-precision components recognition system, on-line production, RT-1 independent research and development the machine operation system with Chinese and English both, simple and convenient use, can be widely used in all kinds of LED lamps, LED drivers, small appliances, circuit boards, digital products, all kinds of control panels, and so on.
RT-1 pick and palce machine ,all the material of X axis, Y axis and material feed platform Adopt pneumatic overtime mode which has improved the running accuracy and feeding speed.
RT-1 pick and palce machine ,Two kinds of visual location system, one is Mark locating visual system in the upside another one is importing camera components location adjust recognition system in the downside, which can insure the accuracy of SMT.
The Z axis was powered by 10 servomotors and made by CNC brushed aluminum rod which insured the high-speed material feed.
Powerful function: with different material feeder, it can finish different SMT for led product.
Advantages
1. Used in any LED product, cost-effective.
2. A lots of components can be placemnet.
3. it with of high quality; fast placement; 10 nozzles and electric feeders.
4. Professional after-sales service team provides overseas service.
5. The whole machine adopts high-definition industrial camera, complete visual para pasted on high precision components.
6. Configuration, SMT machine vision system can automatically identify the MARK point,
improve the efficiency and SMT placement machine production precision effectively.
7. Can be automatically visual programmingProgramming is simple, convenient and even beginner is convenient and practical.
8. The machine configuration five suction nozzle. Can prompt by software manual to replace the suction nozzle.
9. Cost-effective automatic placement machine, the most suitable for small and medium scale production,
scientific research and personal use.
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Software Upgrade: offers lifetime free software upgrades for all products
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
technical parameter
| RT-1 | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
