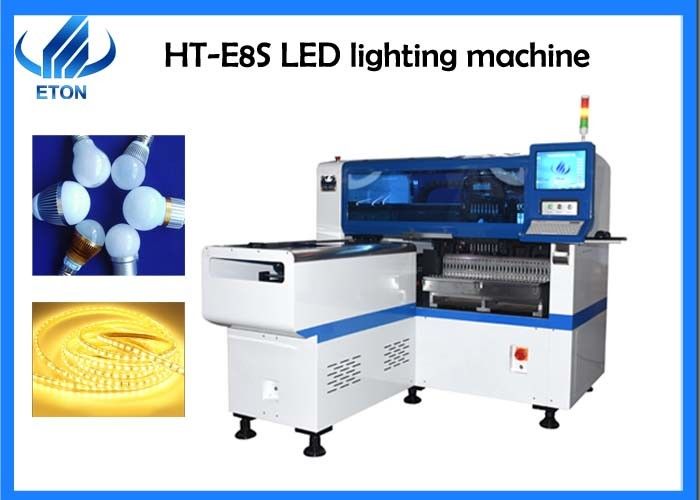

ETON high precision Magnetic linear motor SMT pick and place machine
Four characteristics:
1. Min size : 0402 components
2. Flight recognition visual alignment to ensure placement accuracy
3. High-end magnetic levitation motor, integrated circuit to ensure speed
4. One system for unified control and automation
technical parameter:
Small PCB | 100*100—1200*350 |
Thin thickness | 0.5—5mm |
Smart PCB clamping | Adjustable pressure pneumatic |
Mounting mode |
Group picking and separate placing separate picking and separate placing |
2 sets of precision recognition cameras |
Vision for the flight identification, Mark correction |
High precision | +-0.02mm |
Mounting height | <36mm |
Mounting speed | 40000CPH |
Power consumption | 4kw |
Power | 380AC,50HZ |
X,Y,Z Axis drive way |
High-end magnetic linear motor+ Servo motor |
No of feeders station | 36 |
No of nozzles | 12 |
Application:
It is suitable for the production of circuit boards for a variety of products, such as mobile phones, computers and other electronic equipment, TV and air conditioners and other household appliances, light bulbs, LED and other lamps…
We also have other E series mounter machines for your reference!
PCB | PCB thickness | Mounting speed | No. of feeders station | No. of nozzles |
Mounting precision |
|
HT-E5S |
500*350 100*100
|
0.5-3 | 40000CPH | 36 | 10 | 0.02 |
HT-E5D |
500*300 100*100 |
0.5-3 | 80000CPH | 72 | 20 | 0.02 |
HT-E8S |
1200*350 100*100 |
0.5-5 | 40000CPH | 36 | 10 | 0.02 |
HT-E8D |
1200*300 100*100 |
0.5-5 | 80000CPH | 48 | 20 | 0.02 |
From E5S,E8S to E5D,E8D, we ca see that we have always insisted on continuous innovation, and strive to pursue high speed, high productivity, high precision.
