| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Dimension: | 3100*2300*1550 | Weight: | 1700 Kg |
| Pcb Length: | Any Length | Speed: | 200000 Cph |
| High Light: | 6kw Led Chip Making Machine,200000 CPH Led Chip Making Machine,380AC Pick N Place Machine |
||
SMT pick and place machine led chip making machine
Parameter list
Here are the strip light machine (led lighting making machine/pick and place machine) main parameter.
| PCB | |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| Vision System | |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of nozzles | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Machine features
Machine application

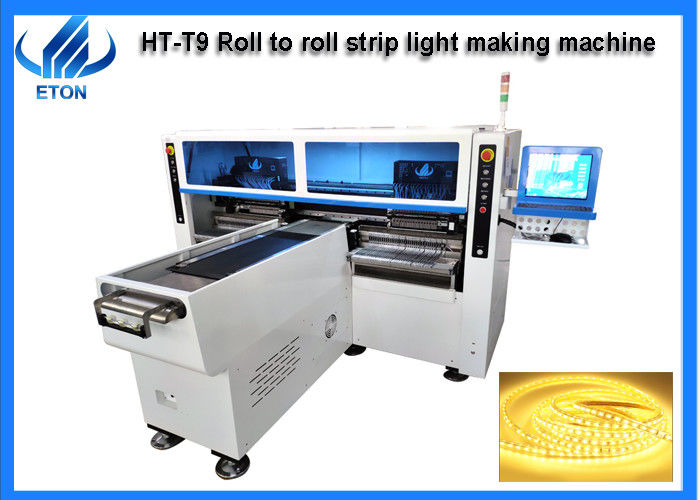

HT-T9 SMT strip light making machine mainly using in SMT strip light production line. For picking led chip and then mount on the PCB. In actual production line, it is using in led lightings, professional for 5 meters, 15meters, 25meters, 50 meters.
Machine lines
For 25m strip light line, it is special, because for so long strip , it need to have good design, like the conveyor length and the buffer machine. For strip line, we can provide 0.5m, 1m, 5m,25m,50m strip line design. Please contact us for more production line design.
