Power/power Consumption: | 380AC,50Hz/ 6kw | No.of Feeders Station: | 32 PCS |
---|---|---|---|
No.of Nozzles: | 10 PCS | Mounting Height: | <25mm |
PCB Length Width: | Max:400*350mm Min:50*50mm | Components: | LED,resistor,capacitors,shaped Components,etc. |
High Light: | 6kw Bulb LED Chip Mounter,45000CPH Bulb LED Chip Mounter,SMT DOB Production Line |

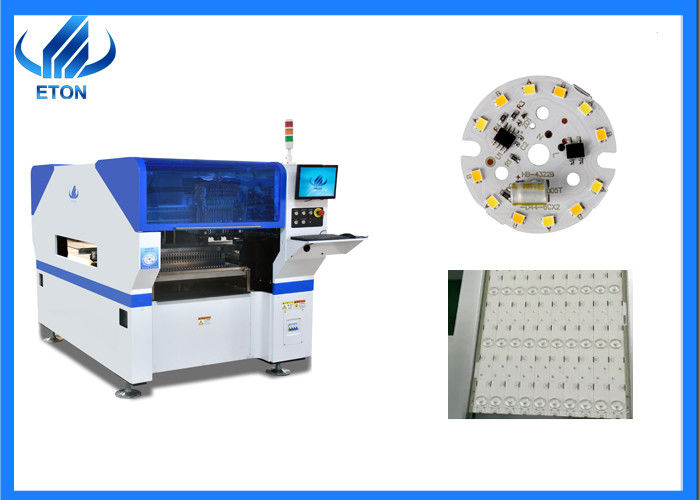

SMT DOB Production Line Bulb Chip Mounter RT-1
Technical parameter | |
Length*Width*Height | 1104*1584*1655mm |
Total Weight | 950kg |
PCB Length Width | Max:400*350mm Min:50*50mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 45000CPH |
Components | LED,resistor,capacitors,shaped components,etc. |
power/power consumption | 380AC,50Hz/ 6kw |
No.of Feeders Station | 32 PCS |
No.of nozzles | 10 PCS |
Mounting Height | <25mm |
Main process of SMT Line for DOB manufacturing
Step one: Print Solder paste on PCB
Step two: Mounting LED chip and capacitor big components on PCB.
Step three: Heating solder paste with PCB to welding together the component with PCB.
Different type of DOB PCBA
The PCBA of Linear bulbs
RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
High-precision printing, the first pass in SMT production
SMT PERIPHERALS
We also provide SMT peripherals, like reflow oven, solder paste, loader, even PCB cleaning machine,etc. We would be honored if we chould provide u the full production line. Fully automatic and semi-automatic optional. The software is self-developed and free for life.
The features of RT-1
A new model pick and place machine of Eton company.
Designed for different types of PCB boards. Using newest high magnetic linear
motor, so the speed and accuracy is better than normalmulti-functional machines.
Can meet 0402 components, Max mounting height can be 36MM.
Suitable for various types of drives, power supplies, circuit boards, lenses, linear bulbs, home
appliance control panels, etc.
A module machine so you can put this kind of machine in series forsaving cost and increasing
production(For the products with lots of materials).
