No.of Feeders Station: | 32 PCS | No.of Nozzles: | 10 PCS |
---|---|---|---|
Power/power Consumption: | 380AC,50Hz/ 6kw | Mounting Speed: | 45000CPH |
PCB Length Width: | Max:400*350mm Min:50*50mm | Mounting Precision: | ±0.02mm ,Vision Alignment, Mark Vision |
High Light: | 6kw Production Line Chip Shooter,45000CPH Production Line Chip Shooter,CCC SMT Lens Bulb Machine |

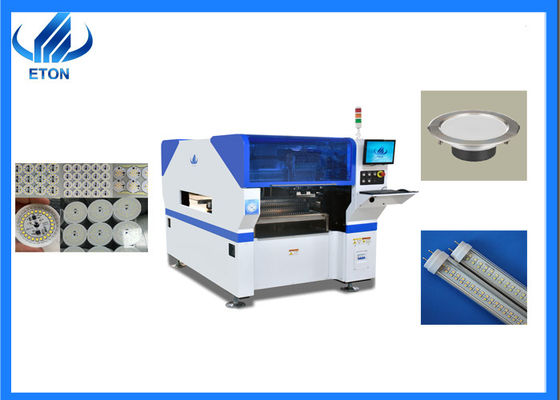

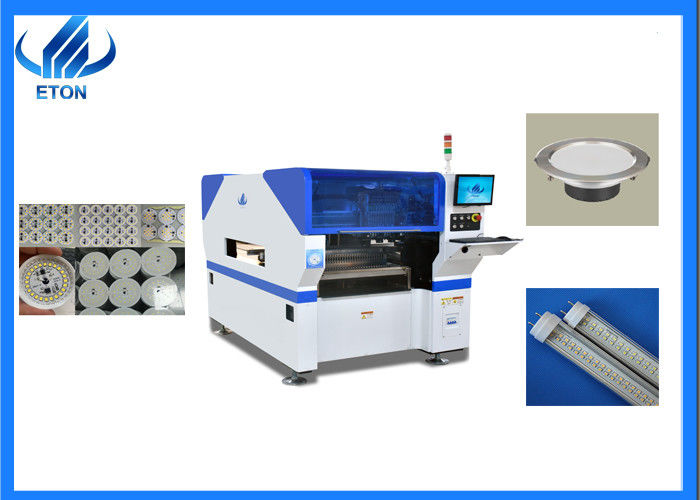

SMT High Accuracy Lens Bulb Production Line Chip Shooter RT-1
Features:
Accurately place, manager, and track components with Smart Feeders
Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Applicable Products: It's suitable for power driver, electric boards,LED screen, bulb, down light, panel, strip, lamp, street light, ceiling light and etc.
COMPONENT: Min.size 0402
SERVICE: Free training and installment. Easy to operate, usually 3 to 5 days of training of operating is enough.
WARRANTY: 1 year, during warranty any parts need to be repaired and replaced will be free.
Technical parameter | |
Length*Width*Height | 1104*1584*1655mm |
Total Weight | 950kg |
PCB Length Width | Max:400*350mm Min:50*50mm |
Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
Mounting speed | 45000 CPH |
Components | LED,resistor,capacitors,shaped components,etc. |
power/power consumption | 380AC,50Hz/ 6kw |
No.of Feeders Station | 32 PCS |
No.of nozzles | 10 PCS |
Mounting Height | <25mm |
Main process of SMT Line for DOB manufacturing
Different type of DOB PCBA
The PCBA of Linear bulbs
RT-1 SMT line not only suitable for DOB and bulb, but also suitable for many other products.
High-precision printing, the first pass in SMT production
Major products
10heads of multifunctioal pick and place machine
Automatic highspeed chip pick and place machine
Automatic glue dispenser machine
Lens mounter
