250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor

250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor
250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor

Large Image :  250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum packaging + wooden box packaging
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 set per month
Detailed Product Description
System: Window 7 Software: R&D Independently
Application: SMT Assembly Production Line PCB Size: Max:1200*330mm Min:100*100mm
Delivery: Within 30 Days Mode Of Transport: Sea/Train/Airplane
Warranty: 1 Year Package: Carton Box
High Light:

250000CPH LED Pick And Place Machine

,

LED Pick And Place Machine

,

Magnetic Linear Motor Smt Assembly Machine

Highspeed magnetic linear motor 200000CPH LED flexible strip pick and place machine

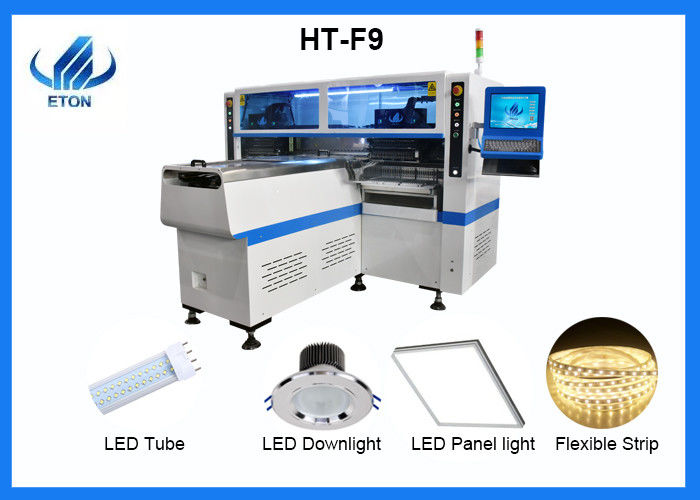

Product Image:



Features:


1. HT-F9 is an ultra-high-speed placement machine with a speed of 200,000CPH~250000CPH, very high productivity.


2. HT-F9 has high-end magnetic levitation motor + servo motor, with high placement accuracy and strong stability.

3.Exclusive patent technology: Group to take and group to mount.


Product parameter:

Dimension

2700*2300*1550mm
Total Weight: 1700 kg

PCB Length width

Max:1200*330mm
Min:100*100mm

PCB Thickness 0.5~5mm
Mounting Mode Group to take and group to mount
No.of Camera 5PCS
Vision System Vision alignment, Mark correction
Mounting Precision ±0.02mm
Mounting Height ≤5mm
Mounting Speed 200000CPH~250000CPH
Components Space 0.5mm
Feeders Station 68PCS
No.of Nozzles 68PCS
XY Axis Drive Way High-end magenetic linear motor+servo motor
Feeding way Electric feeder with double motor


After-sales service:

1.Professional solution: Provide professional SMT Full line solutions.
2.Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.
3.Service station: India office and Indian engineers can provide you with services faster.
4. Visit customers regularly and gather information. Visit customers regularly and gather information
5.Free Technical Support: 7* 24 technical online support.
6. Software updates: Enjoy free software updates for life.


FAQ:
Q1: Is your software interface in English?
A: English interface and Chinese interface are both available.

Q2.Machine is easy to operate?
A:Machine is very easy to operate, usually 3 to 5 days training of operating is enough.

Q3: How is the breakdown rate of machine?
A: Our machine is very stable, the breakdown rate is less than 0.001.

If you have any questions, please feel free to consult! We will provide you with the best service.



Mounted products:


1.HT-F9 is suitable for 0.6M, 0.9M, 1.2M rigid PCB and 0.5M, 1M LED flexible strip, which can produce 2-4 kinds of high-capacity materials at the same time.



2.HT-F9 is suitable for mounting LED3014, 3020, 3528, 5050 or capacitor resistor, bridge rectifiers, etc. Can produce led flexible strips, panel lights, tubes, etc.



250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor 0



Company brief introduction:


Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.

ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents, 12 software copyrights, 112 Practical patents.

ETON has invented the fastest automatic pick and place machine with speed 200000CPH, which save mach labors and space for production, got large market over 20 countries.



Company cooperation customers:
250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor 1
SMT line:


For produce led light, there are not only pick and place machine, but also need prepare other smt machines, like the conveyor, stencil printer, reflow oven.

For more clients convenient, we support whole line smt machines with factory price and good quality.

250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor 2

Other models of the company:

250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor 3

250000CPH LED Pick And Place Machine SIRA Magnetic Linear Motor 4
