Product Details:
Payment & Shipping Terms:
|
| Size: | 2700mm*2300mm *1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | PCB Clamping: | Adjustable Pressure Pneumatic |
| Mounting Element Height: | ≦5 Mm | No. Of Camera: | 5 PCS (Digital Camera) |
| High Light: | Magnetic Linear Pick And Place Machine,Pick And Place Machine 5mm PCB,Dual Arm Four Module SMT Mounter |
||

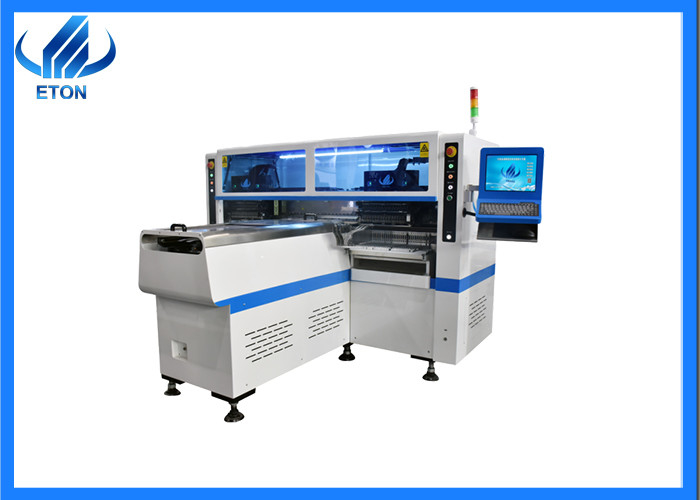

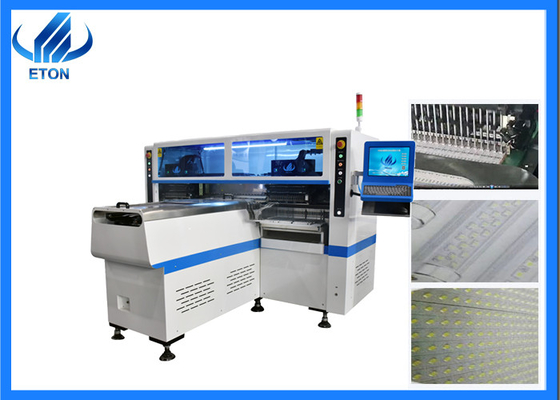

high precision Four Module Magnetic Linear Pick And Place Machine 5 mm PCB
Details
Capacity reach 200000 to 250000CPH ultra high-speed pick and place machine
68 heads, producing four types materials at the same time
Vision alignment, Mark correction
Apply to LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers, etc
Apply to LED tube, panel, flexible strip, linear light, etc.
production
Technical paremeter
| HT-F9 ultra high-speed pick and place machine | ||
| Dimension | Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg | |
| PCB |
PCB Size |
Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Vision System | No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | ||
| Mounting speed | 200000-250000CPH | |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc | |
| No. of feeders station | 68PCS | |
| No. of nozzles | 68PCS | |
Company information
Shenzhen ETON Automation Equipment Co., LTD, is a leading manufacture of automation high-speed pick and place machine focusing on “ High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capacity of design, R&D, manufacturing, sales& service.
Certificate
Product description
| Packaging | vacuum packaging, packaging using wooden boxes |
| After service |
Maintenance period: one year Visit customers regularly and gather information Provide latest information about technology and equipment |
| Terms of payment | 30% depositing on the date of signing contract,70% payment before delivery. |
FAQ
Q:How is the breakdown rate of machine?
Our machine is very stable. The breakdown rate is less than 0.001.
Q:Why is your price is so high?
Cause our machine quality, accuracy and performance is better, different but better.
Q:How long is the lead time?
The date of delivery is ship the goods within four weeks after the deposit.
