Touch Screen 4KW Single Module LED Placement Machine 45000CPH

High-precision intelligent single-module multi-function LED placement machine



Product details

Features
①. Single module Machine
②. Mounting components: LED, capacitor, resistor, IC, shaped components, etc.
③. Component: MIN size 0402, MAX height 15mm
④. Application: LED light, Power driver, electric board, lens, linear bulb, household appliance, fluorescent light, bulb, ceiling light, panel light, cast light lamp, mining lamp, down light, flexible light strip, tube etc.

Exclusive patented technology
①.  Electronic feeder feeding system
②. Non-stop material re-loading function
③. Auto-optimization after coordinates generated, etc

ŽHigh Capacity & High accuracy

①. High-speed magnetic linear motor pick and place machine in led light production line.

②. 12 heads pasted on the PCB board at the same time, maximum mounting speed 45000 CPH.
③. Mark correction, Flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.

Technical parameter

After-sales service

1. Maintenance period: 1 year(any parts need to be repaired and replaced will be free)

2. Visit customers regularly

3. ETON Software R&D , easy to operate and free updates for life.

4. Provide free installation and teaching.

5. There are service offices in India and Turkey that can provide you with services faster.

6. Fast delivery. (Within 30 days)

7. Can provide you with other equipment you need. (Solder paste printer, reflow soldering, etc.)


FAQ
Q1: What is the mode of transportation?

A: Our modes of transportation are flexible, including water, land and air transportation.

Q2: Is your software interface in English?

A: English interface and Chinese interface are both avaible.


Q3: How can i buy machine from you ?
A: (1)Consult us on line or by e-mail
    (2)Negotiate and confirm the final price , shipping , payment method and other terms
    (3)Send you the proforma invoice and confirm your order
    (4)Make the payment according to the method put on proforma invoice.
    (5)We prepare your order in terms of the proforma invoice after confirming your full payment .
        And 100% quality check before shipping
    (6)Send your order via express or by air or by sea .

   If you have any questions, please feel free to contact me.


Machine Parts

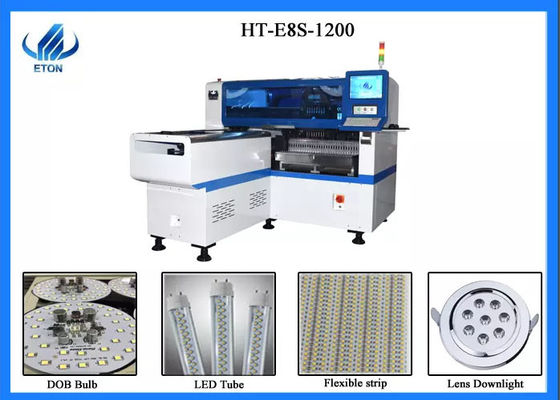

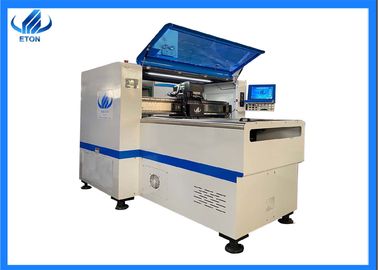

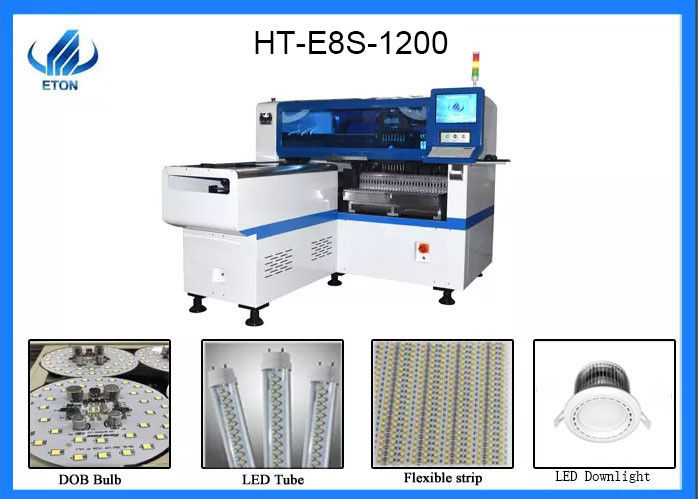

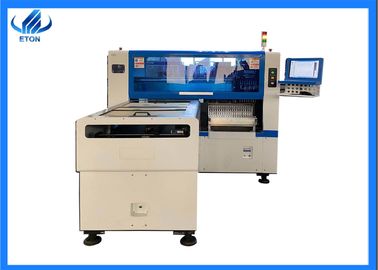

E8S is single module magnetic linear motor multifunctional pick and place machine, it has 28 PCS of feeders stations, 12 PCS of nozzies, the capacity reach 45000CPH, is very high speed, it has vision alignment flight identification, mark correction. The precision of mounting components is very high.

Application

Multi-functional machine can mount many kinds of products, such as DOB, bulb, lens, linear bulbs, Led corn light, flexible light

strip, power driver, panel light, ceiling light,electric board, display screen, down-light,streetlight, etc.



About our company

ETON company estabished in 2011 which is focusing on SMT pick and place machine, and has achieved everyone's unanimous recognition and praise. In the field of high-speed placement machines has become a leading Chinese brand. Before 2020, ETON company has established Jiangxi Industrial Park, SHENZHEN Headquarters, East China ZHENJIANG Office, ZHONGSHAN Office and XIAMEN Office in China. And has established a Delhi office in India.

ETON has invented the fastest automatic pick and place machine with speed 200000CPH, which save mach labors and space for production, got large market over 20 countries.

Certificate of honour

ETON advanced technology and innovation drives the revolution of market repaidly, and obtains a number of intellectual property technologies, including 9 invention patents, 12 software copyrights, 112 Practical patents.

Exhibition

Guangzhou Exhibition, Shenzhen Exhibition, India Exhibition, Vietnam Exhibition, Pakistan Exhibition, etc.
