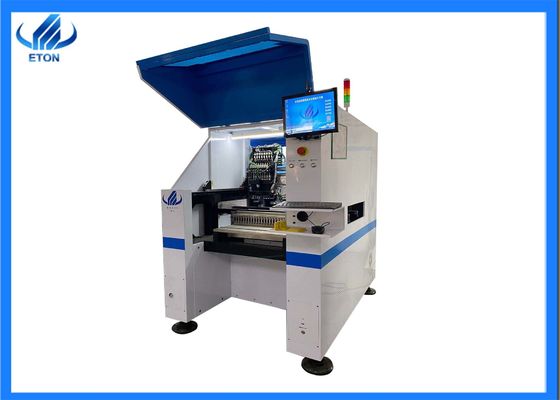

Automatic high efficiency low cost SMT LED Placement Mounter
What is SMT Production Process?
Step 1:Solder paste Printing
Operate the stencil printer to print the solder pastes onto the PCB
Step 2:Mounting Part
The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting,
and the pick and place machine will automatically pick components and place on PCB.
Step 3 : Reflow Soldering
The PCB board be mounted with components is sent to reflow oven, reflow oven will heat and welding the components with
solder paste on PCB.
Step 4 : Testing
Check whether the PCBA is misaligned or shift.
What are the characteristics of the RT-1 LED placement machine?
♦ 1. High-precision industrial cameras solve the precise placement of precision chips, such as IC, QFN and other small-size chips. Minimum placement of 0402 chips.
♦ 2. Imported customized suction nozzle is adopted, which is not easy to lose parts during suction and placement, and the installation is convenient and durable.
♦ 3. It is equipped with 10 placement heads and 32 feeder stations, which can suck 10 different materials at the same time, basically without replacing the nozzle.
♦ 4. High-performance adaptability, accuracy control at the level of plus or minus 0.04mm, high-precision repeat positioning, powerful XY performance, high-speed operation,
♦ 5. Double-motor electronic feeder, stable feeding, faster feeding, no need for repeated calibration.
♦ 6. Effectively ensure the reliability and stability of the placement machine for a long time.
♦ 7. The whole machine adopts precision guide rail, which improves the precision of SMT placement.
|

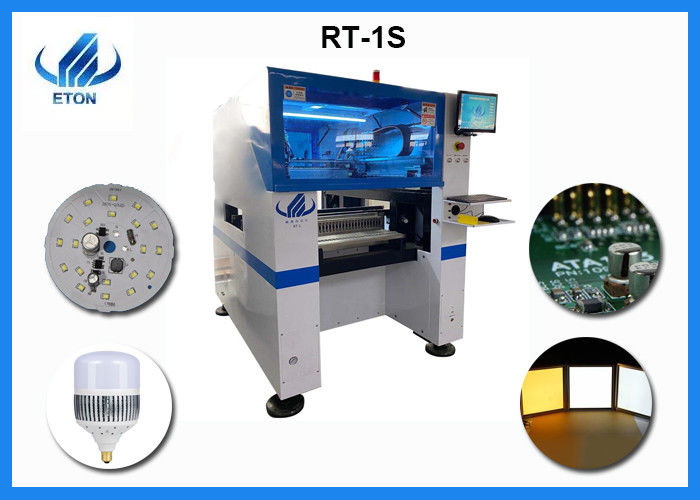

RT-1S |
L*W*H |
1200*1930mm*1500mm
Total Weight:2200kg |
PCB Length Width |
MAX:400*350mm MIN:50*50mm |
Mounting Mode | Group picking and separate placing,separate picking and separate placing |
Mounting height | ≦22mm |
No. of Camera | 2PCS |
Mounting Precision | ±0.04mm |
Mounting Speed | 30000~35000CPH |
Components Space | 0.2mm |
Feeders Station | 32PCS |
No. of nozzles | 10PCS |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
X, Y, Z, Axis Drive way | Servo motor |
Feeding Way | Electric feeder with double motor |
What is the application scope of RT-1 LED placement machine?
► 1. Application areas: mass production, personal entrepreneurship, R&D and customization, home appliance industry, power drive, LED lighting.
► 2. Mounting components: LED,capacitor,resistor,IC,shaped components,etc.
Capacity: The capacity of RT-1 is reach 30000~35000CPH.
► 3. Production: DOB, home appliance control boards, power drivers, LED down-lights, LED bulb lights, LED panel lights, etc.
Attention:
► 1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
► 2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
► 3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
► 4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
After service:
► 1. Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.
► 2. Service station: India office and Indian engineers can provide you with services faster.
► 3. After-sales service: Send engineers to your factory for free installation and training.
► 4. Shipment: Shipment within 30 days after payment.
► 5. Transportation methods: sea transportation, road transportation, air transportation, etc.
► 6. Software updates: Enjoy free software updates for life.
