Product Details:
Payment & Shipping Terms:
|
| PCB Size: | Max:400*300 Mm Min:50*50 Mm | PCB Thickness: | 0.1-6mm |
|---|---|---|---|
| PCB Clamping: | Electric Clamping | Mounting Speed: | 60000-70000CPH |
| No. Of Camera: | 4 PCS | No. Of Nozzles: | 20PCS |
| High Light: | 70000CPH LED Bulb Assembly Machine,6mm PCB LED Bulb Assembly Machine,CCC Electric Clamping Chip Mounter |
||

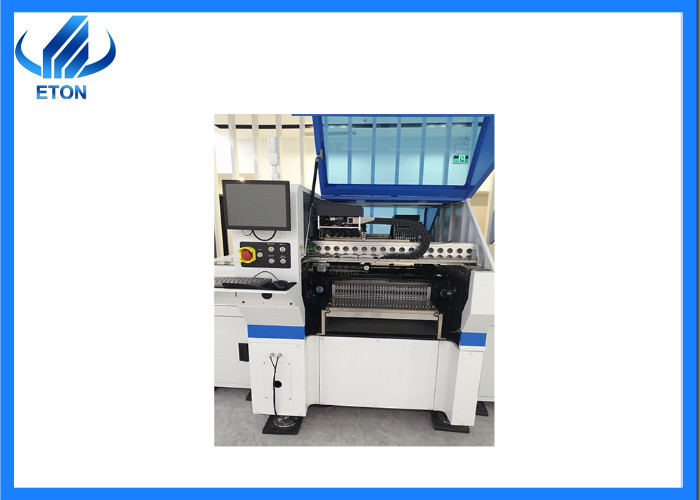

High stability servo pick and place LED bulb assembly machine Chip mounting machine
Product description
Double module magnetic linear motor multi-functional pick and place machine
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: electric board, DOB, down light, bulb, panel light, display, etc
Features
Double-module magnetic linear motor multi-functional pick and place machine
Mounting mode: group picking and separate placing, separate picking and separate placing
Vision alignment, Mark correction
The mounting precision is +0.04mm
Control system: magnetic linear motor, servo motor and Stepper motor
Technical parameter
| RT-2 pick and place machine | ||
| Dimension | Length* Width* Height | 1195mm*1930mm*1500mm |
| Total weight | 2500kg | |
| PCB | PCB Size | Max:400*300mm Min:50*50mm |
| PCB Thickness | 0.1-6mm (Fixtures required for less than 0.6mm) | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| Vision System | No. of camera | 4 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 60000-70000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 64PCS | |
| No. of nozzles | 20PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise, double soft enterprise.
We specialize in SMT high-speed pick and place machine about ten years, and obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, etc
Certificate
Remarks
Packaging : vacuum wooden boxes packaging
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
services:
Warranty period: one year
Provide latest information about technology and equipment, free software upgrade
24 hours online service and technical support, solve your problem rapidly
Design and provide the entire production line for you according to your needs
FAQ
Q:Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
Q:How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
Q:It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
