| Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| PCB Size: | 1200*350mm | Total Weight: | 1250kg |
| Display: | Touch Screen Monitor | Feeders: | 32 PCS |
| Heads: | 10pcs | Speed: | 30000~35000CPH |
| High Light: | Led Pcb Chip Mounter Machine,6KW Chip Mounter Machine,35000CPH Pcb Pick And Place Machine |
||

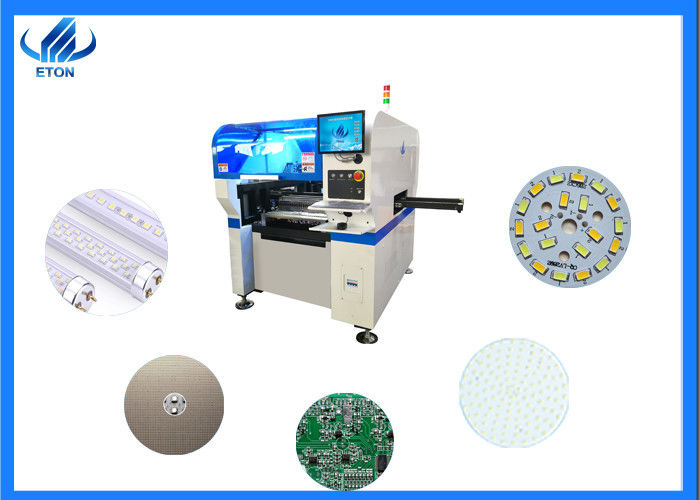

Multi - Functional led Pcb Pick And Place machine chip mounter machine
Details
all the material of X axis, Y axis and material feed platform Adopt pneumatic overtime mode which has improved the running accuracy and feeding speed.
Two kinds of visual location system, one is Mark locating visual system in the upside another one is importing camera components location adjust recognition system in the downside, which can insure the accuracy of SMT.
The Z axis was powered by 10 servomotors and made by CNC brushed aluminum rod which insured the high-speed material feed.
Powerful function: with different material feeder, it can finish different SMT for led product.
| RT-1 pick and place machine | ||
| PCB | PCB length width | Max:400*350mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <25mm | |
| Mounting speed | 30000~35000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | 26 PCS |
| No.of nozzles | 8 PCS | |
| Feeding way | Electric feeder with double motor | |
components
LED,capacitors,resistors,IC,lens ,shaped components,etc.
