| Name: | Pick And Place Machine | Visual Camera: | 2 Sets Of Imported Camera |
|---|---|---|---|
| PCB Size: | 1200*350mm | Mounting Height: | <36mm |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | Model: | HT-E8D-1200 |
| Total Weight: | 2000kg | Mounting Speed: | 80000CPH |
| High Light: | Surface Mounted Led Making Machine,SMD Components Led Making Machine,80000CPH Led Light Production Machine |
||

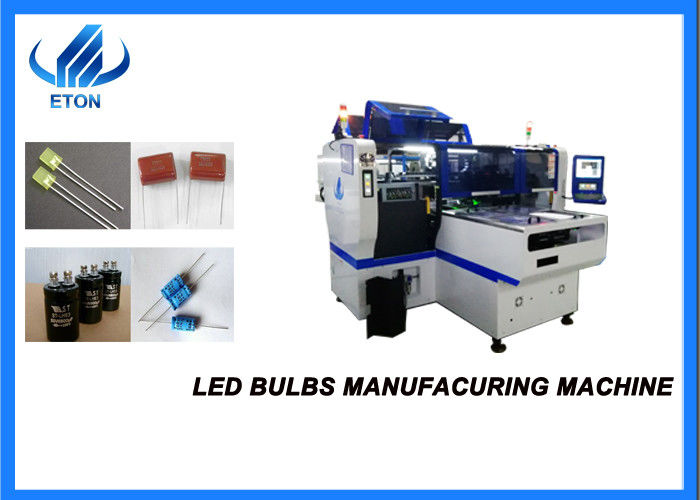

High Efficiency led making Machine For led light production line
What is SMT:
SMT is Surface Mounted Technology, which is currently the most popular technology in the electronics assembly industry.
What are the features of SMT:
With high assembly density, small size and light weight of electronic products, the volume and weight of SMD components are only about one-tenth of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. The defect rate of solder joints is low.
Good high frequency characteristics, reducing electromagnetic and radio frequency interference.
It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.
Product features
1, the use of industrial computer + independent special controller control, system stability, simple operation, easy to learn.
2. The software is powerful, and the programming coordinates are displayed in digital and graphical ways, so it is convenient to adjust and change the coordinates. The progress and components of the patch are displayed graphically in the production process, and the subsidy materials are convenient.
3. The software adopts the database system, different kinds of PCB programming can be stored, easy to call, new product programming, lifelong call.
4. The negative pressure detection system is adopted to accurately detect the suction material and effectively prevent the material leakage and throwing.
5. Optional: 8mm, 12mm, 16mm and 24mm automatic feeder; Different suction nozzle
| HT-E8Dl ed light making machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 80000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 40 |
| No.of nozzles | Dual mode.totally 16 | |
| Feeding way | Electric feeder with double motor | |
a whole production line show
Application
Honour show
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.
Including 9 invention patents,112practical patents,12 software copyrights.
