Product Details:
Payment & Shipping Terms:
|
PCB Length Width: | Max:1200*330mm Min:50*50mm | PCB Thickness: | 0.5~5mm |
---|---|---|---|
System: | Window 7 | Total Weight: | 1700 Kg |
Power Supply: | 380V 50Hz | Applicable Components: | LED Chip/resistor/capacitor/bridge Rectifiers |
Power: | 6KW | Vision System: | Vision Alignment, Mark Correction |
High Light: | 6KW LED Placement Machine,Window 7 LED Placement Machine,200000CPH Smd Led Mounting Machine |

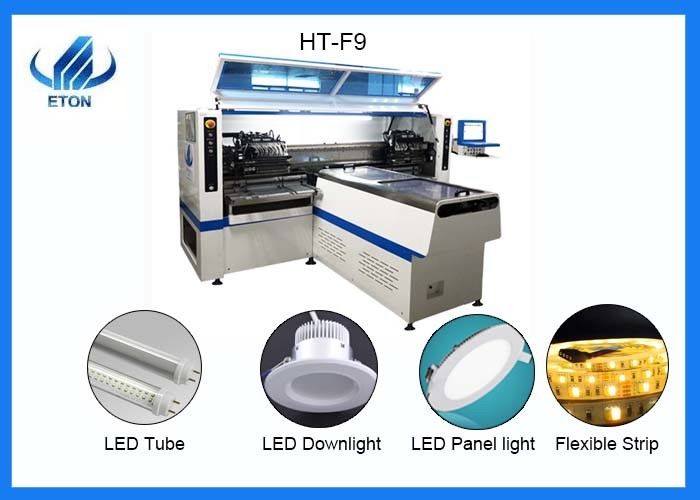

Group to take and group to mount LED high speed Pick and place machine, capacity reach 200000CPH
Features:
1.Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
2.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
3.Exclusive patent technology: Group to take and group to mount.
4. 5 cameras, 2 feeder debugging cameras, 2 nozzle debugging cameras, one Mark camera, high placement accuracy.
5.High-end magnetic levitation motor + servo motor, with strong stability and low noise.
6. Simple operation: Chinese graphic operation interface, easy to operate. Programming is concise.
7.Convenient maintenance: The design is simple and easy to maintain. The replacement parts cost is low, and the maintenance cost is low.
8.The software, circuit and hardware structure of the whole machine are all independently developed by our company, with independent intellectual property rights.
Technical parameter:
Model Number | HT-F9 |
Dimension |
2700*2300*1550mm Total Weight:1700kg
|
PCB Length width |
MAX:1200*330mm MIN:100*100mm |
PCB Thickness | 0.5~5mm |
Mounting Mode | Group to take and group to mount |
No. of Camera | 5PCS(Digital camera) |
Mounting Precision | ±0.02mm |
Mounting Height | ≤5mm |
Mounting Speed | 200000~250000CPH |
Components | LED3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers |
Components Space |
0.5mm |
Feeders Station | 68PCS |
No. of Nozzles | 68PCS |
XY Axis Drive Way | High-end magnetic linear motor + servo motor |
Feeding way | Electric feeder with double motor |
Application:
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.
2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
