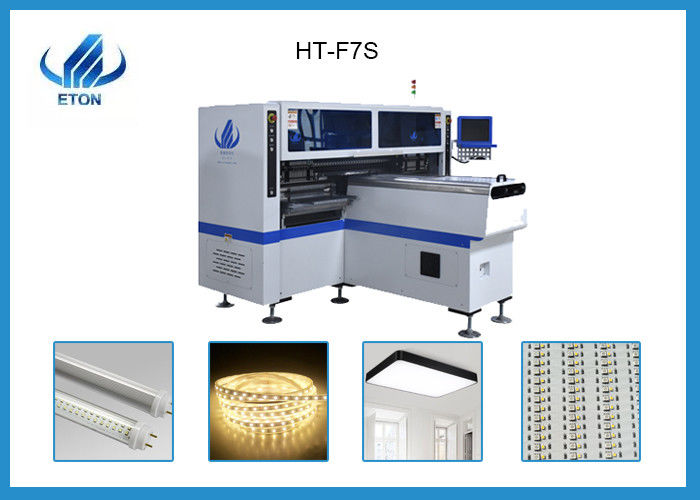

Online Drive Dual Arm SMT Pick And Place Machine 34 Heads

Online Drive Dual Arm SMT Pick And Place Machine 34 Heads
Online Drive Dual Arm SMT Pick And Place Machine 34 Heads

Large Image :  Online Drive Dual Arm SMT Pick And Place Machine 34 Heads

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Application: LED Flexible Strip/tube/panel/display Etc. PCB Length Width: Max:1200*330 Mm Min:50*50 Mm
PCB Clamping: Adjustable Pressure Pneumatic System: Window 7
Software: R&D Independently Display: Touch Screen Monitor
Position Mode: Optical Transmission Mode: Online Drive
High Light:

Dual Arm SMT Pick And Place Machine

,

Online Drive SMT Pick And Place Machine

,

34 Heads LED Light Production Machine

Hot Sales Dual arm SMT Pick and Place Machine 34 Heads LED Light Production Machine



Product advantages:



1. Independent software development.

2. 2 mounting modules,17 nozzles for each mounting part, 34 heads, part A and part B can be mounted separately. Capacity reach 150000-170000 CPH.

3. It adopts magnetic levitation design, fast speed, stable operation and not easy to malfunction.

Double-motor electronic feeder, accurate feeding, no difference, more stable.

4. Vision system: 5 PCS camera, blue light recognition, visual alignment, calibration automatically, high precision.

5. Exclusive patent technology: Group to pick and group to mount

6. Feeding missing component automatically, more intelligent and save labor.

7. Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.

8. Application:Suitable for mounting 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m, LED flexible strip.

Available for board with any proportion of LED chip and resistor. Can produce LED tube/LED panel/LED display and many kinds of linear products.





Technical parameter:



HT-F7S
Length*Width*Height 2700*2450*1530mm
PCB Length width

MAX:1200*330mm

MIN:50*50mm



PCB Thickness 0.5~5mm
Mounting Mode Group to take and group to mount
No. of Camera 5 sets of imported camera
Vision System Vision alignment, Mark correction
Mounting Precision ±0.02mm
Mounting Height 15±2mm
Mounting Speed 150000~170000CPH
Components LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc.
Components Speed 0.2mm
Feeders Station 68PCS
No. of Nozzles 34PCS
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
XY Axis Drive Way High-end magnetic linear motor and servo motor
Feeding way Electric feeder with double motor

















































Online Drive Dual Arm SMT Pick And Place Machine 34 Heads 0

About our company:



Since its establishment, Shenzhen ETON Automation Equipment Co., Ltd. has adhered to the concept of "serving customers" and established the market trend.



Today, ETON Automation has successfully developed LED SMD equipment that can quickly improve assembly production efficiency and reduce labor costs, as well as a complete after-sales service system that has won the recognition of the market and the majority of customers, and stabilized its leading position in the SMD industry.



While ETON has made great achievements in the LED field, it has also been committed to technological innovation and development in the SMT field. Since the development of the multi-functional placement machine in 2013, after years of concentrated research and development, it has finally achieved a breakthrough in technology. Progress, and successfully developed a variety of multi-functional general-purpose placement machines and high-speed dedicated placement machines, which won wide recognition and good reputation in the market.



Online Drive Dual Arm SMT Pick And Place Machine 34 Heads 1





After service:



1.We have local India engineer, we will arrange engineers to install, debug, and training you for free, Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.

2.We have a professional sales manager to provide you with professional advice and services

3.We provide 24-hour online service to solve your problem quickly

4.We will specify the production plan for you according to your budget

5.1 year free warranty

6.Visit customers regularly and gather information

7.Provide latest information about technology and equipment

8.Software updates are free for life





SMT production line features:



1. Include automatic pick and place machine, solder paste stencil printer, reflow ovens machine, conveyor, Excellent combination

2. From print solder paste to mounting components, the whole smt line is equipment, you just need to decide the product, we give you best suggestion for the production line

3. Flexible. We can provide automatic line or semiautomatic line. It is flexible and decide by you.

4. Much save cost. Buy from one manufacturer save time, save money, much easy for after sales service.



We can provide whole line solution if you want, we are very professional on SMT field.

The following is the semi-automatic production line of F7S machine:

Online Drive Dual Arm SMT Pick And Place Machine 34 Heads 2



FAQ:



Q1: How is your company?

A: Our company ETON is the largest manufacturer of highspeed pick and place machine.

We start from 2011,around 10 years. we have around 50000 square meter industrial manufacturing park and around 300 person in company.

In the market ,around 80% of large LED factory are our client.



Q2: What are your advantages?

A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.



Q3 : Is there any quality guarantee?

A: We stick to quality first, client-oriented, Continuous improvement!



Q4.How is the breakdown rate of machine?

A: Our machine is very stable, the breakdown rate is less than 0.001.



Online Drive Dual Arm SMT Pick And Place Machine 34 Heads 3
