Product Details:
Payment & Shipping Terms:
|
| Power: | 5 KW | Mounting Speed: | 150000-170000 CPH |
|---|---|---|---|
| Length* Width* Height: | 2700 Mm*2450 Mm *1530 Mm | PCB Thickness: | 0.5-5 Mm |
| PCB Clamping: | Adjustable Pressure Pneumatic | Power Supply: | 380 AC 50 Hz |
| High Light: | LED Monitor SMT Mounting Machine,5 KW SMT Mounting Machine,Hard Board Light Smt Placement Machine |
||

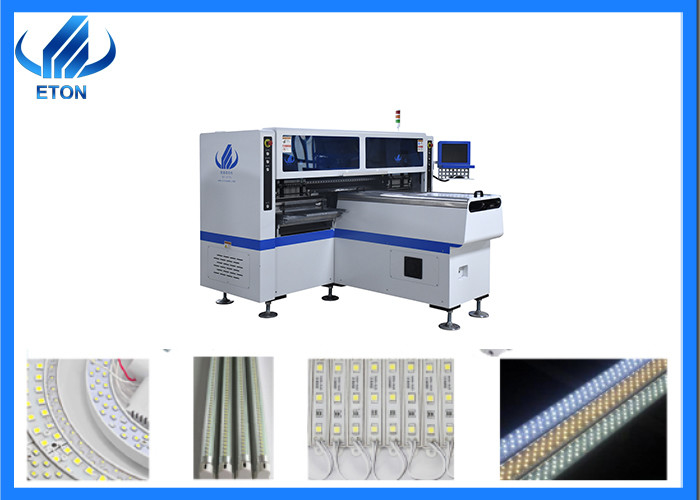

High-speed excellent performance hard board light soft light with 34 heads pick and place machine
Product description
Dual purpose professional high speed mounting machine, 2~4 type of capacity reach 150000-170000CPH
Vision alignment, Mark correction.
Technical parameter
| HT-F7S pick and place machine | ||
| Dimension | Length* Width* Height | 2700mm*2450mm *1530mm |
| Total weight | 1400kg | |
| PCB | PCB Size | Max:1200*330mm Min:50*50mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | LED monitor | |
| Vision System | No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.02mm( repeat precision) | |
| Mounting speed | 150000-170000CPH | |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc | |
| No. of feeders station | 68PCS | |
| No. of nozzles | 34PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor |
|
Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc
Application: flexible strip, LED tube, panel light, display screen, etc
Company information
Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise, double soft enterprise.
Certificate
Exhibition
In order to understand the development of the industry and increase the customer area, our company participates in a large number of domestic and foreign exhibitions every year.
Delivery
Services
Free professional advice: For the production of SMT machine.
Free technical support: 7*24 hours online technical service.
Free installation and training: We have established offices overseas and can arrange engineers to go directly to the factory for free installation and training.
Free upgrade software: The machine software is developed by our company, so we provide life-long free upgrade software for customers who purchase the machine
FAQ
The transmission direction of this machine is both direction
Yes, the electrical control is by ourselves and have exclusive patent technology.
manufacturer. We have our own industrial park.
