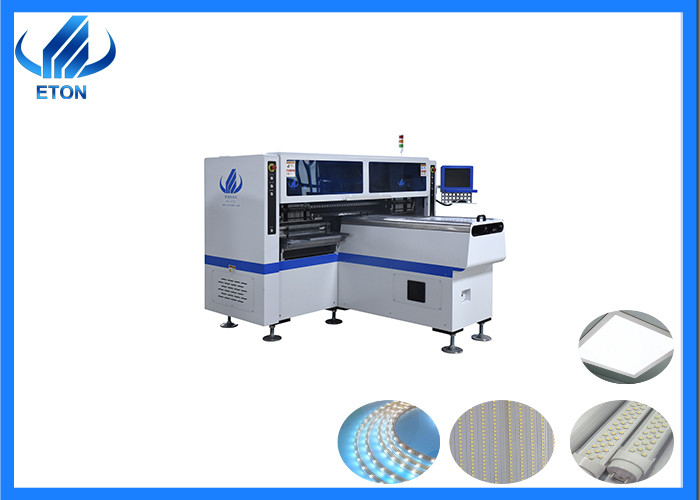

CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH

CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH
CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH

Large Image :  CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packaging : vacuum wooden boxes packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Length* Width* Height: 2700 Mm*2450 Mm *1530 Mm Brand: ETON
Total Weight: 1400 Kg PCB Size: Max:1200*330 Mm Min:50*50 Mm
No. Of Camera: 5 PCS(Digital Camera) No. Of Nozzles: 34 PCS
High Light:

Flexible Lamp SMT Strip Mounting Machine

,

CCC SMT Strip Mounting Machine

,

170000CPH Smt Mounter Machine

High practicability, good service, high-precision flexible lamp strip mounting machine



Product description



Dual purpose professional high speed mounting machine, 2~4 type of capacity reach 150000-170000CPH

Vision alignment, Mark correction

Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc

Application: flexible strip, LED tube, panel light, display screen, etc







Features



High capacity Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED hard light board and LED flexible strip. producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.
High precision Two mounting modules ,17 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Exclusive Exclusive patent technology :group to take and group to mount.





Technical parameter

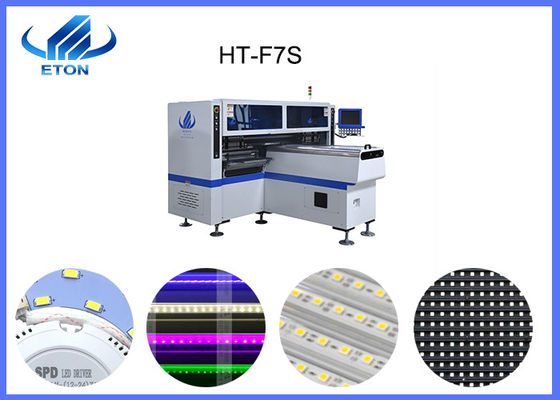

HT-F7S pick and place machine
Dimension Length* Width* Height 2700mm*2450mm *1530mm
Total weight 1400kg
PCB PCB Size Max:1200*330mm Min:50*50mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
  Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display LED monitor
Vision System No. of camera 5PCS(Digital camera)
  Vision alignment, Mark correction
  Mounting precision +0.02mm( repeat precision)
  Mounting speed 150000-170000CPH
  Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
  No. of feeders station 68PCS
  No. of nozzles 34PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor





CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 0



CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 1



Company information



It is a high-tech enterprise dedicated to the R&D, production and sales of SMT high-speed placement machines. In 2020, an industrial park covering an area of 50,000 square meters will be established in Jiujiang, Jiangxi. The industrial park is equipped with an advanced processing and manufacturing center, and the quality of the machine The control is very strict.



CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 2



CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 3



Delivery



CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 4



CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 5







CCC Flexible Lamp SMT Strip Mounting Machine 170000CPH 6





FAQ



Do you have any customers in India? How many machines are there in India?

Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.

Can I visit the production site of your machines in India?

I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.

Does the price include the spare parts(feeder and nozzle)?

Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
