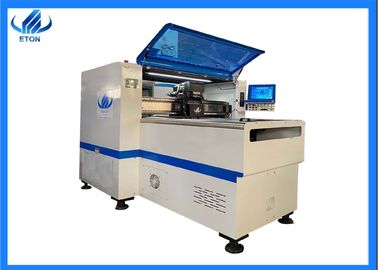

LED Tube/lens/bulb/display production line machine Factory shipment of multifunctional LED placement machine
Introduction of the machine:

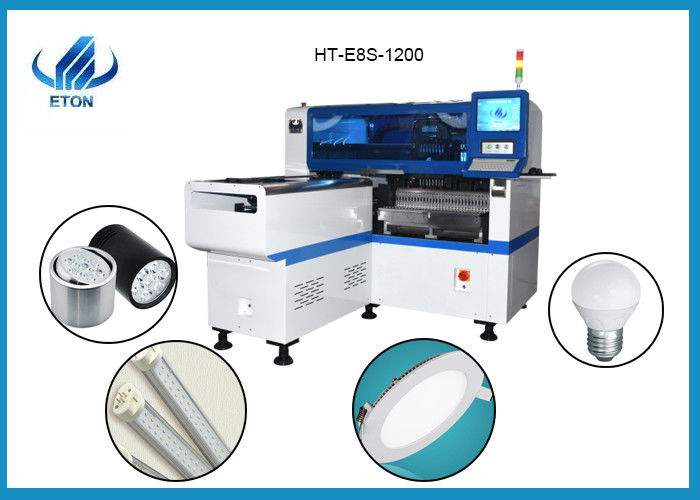

HT-E8S is single module magnetic linear motor multifunctional pick and place machine.
This machine designed for many kinds of PCB boards. Using newest high magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.
This multi-function placement machine has 12 placement heads and 28 feeder stations. The placement accuracy reaches ±0.04mm, which is suitable for placement of PCB boards with high precision requirements. It can be mounted on many kinds of PCB board.
The minimum board size is 100*100mm and the maximum is 1200*500mm. Therefore, the products that can be mounted are DOB, LED bulb, LED tube, LED panel light, LED down-light, lens, light strip, display screen, driver, Power supply, circuit board, home appliance control board, etc.
Mounting components: LED chip, capacitor, resistor, shaped components. etc.
Four characteristics:
1. Min size : 0402 components ; Max height:15mm
2. Flight recognition visual alignment to ensure placement accuracy
3. High-end magnetic levitation motor to ensure the accuracy and speed of placement
4. One system for unified control and automation
Technical parameter:
|
HT-E8S-1200 |
L*W*H | 2550*1650*1550mm |
Total Weight | 1700kg |
PCB Length Width | MAX:1200*500mm MIN:100*100mm |
PCB Thickness | 0.5~5mm |
Mounting Mode | Group picking and separate placing, separate picking and separate placing |
Mounting height | <15mm |
No. of Camera | 2sets of imported camera |
Mounting Precision | ±0.04mm |
Mounting Speed | 45000CPH |
Components Space | 0.2mm |
Feeders Station | 28PCS single module |
No. of nozzles | 12PCS single module |
Power | 380AC 50Hz |
Power Consumption | 4KW |
X,Y,Z, Axis Drive way | High-end magnetic linear motor + servo motor |
Application:
