| Weight: | 1700 Kg | PCB Size: | Max:1200*500 Mm Min:100*100 Mm |
|---|---|---|---|
| PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Speed: | 45000CPH |
| No. Of Nozzles: | 12 PCS Single Module | No. Of Feeders Station: | 28 PCS Single Module |
| High Light: | Double Motor Pick And Place Machine,Wide Practicality Pick And Place Machine,5mm PCB Smt Mounter Machine |
||

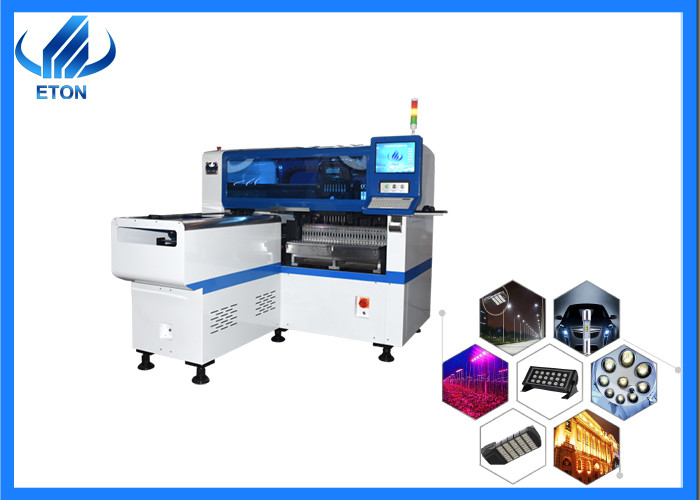

Multi-functional pick and place machine with wide practicability, high quality and good performance
Product
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: power driver, electric board, lens, linear bulb, household application etc.
Technical parameter
| HT-E8S-1200 pick and place machine | ||
| Dimension | Length* Width* Height | 2550mm*1650mm*1550mm |
| Total weight | 1700kg | |
| PCB | PCB Size | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 sets of imported camera |
| Vision for the flight identification, mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 45000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 28PCS single module | |
| No. of nozzles | 12PCS single module | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor |
|
Features
| Low failure rate | The feeding method adopts dual-motor electronic feeder, independent control is more precise. |
| intelligent | Automatic recognition of compensation optimization, and non-stop refueling function. |
| Wide application | Mounting technology is group picking and splitting, splitting and splitting, which is suitable for the mounting of a variety of products, such as: flexible light strips, panel lights, lenses, display screens, bulbs, tubes, etc. |
Details
Company information
Since its establishment in 2011 with Shenzhen, China, ETON is a technology enterprise dedicated to the development, production and sales of SMT high-speed placement machines. In 2020, ETON Jiangxi Industrial Park will be completed, equipped with an advanced processing and manufacturing center, and the production process will be further standardized and streamlined. The products are sold to more than 20 countries and regions including South Korea, India, Vietnam, Turkey, Egypt, Tunisia, etc.
Certificate
Exhibition
In order to promote the company’s products efficiently, increase visibility, recognize and understand related industry knowledge, and obtain certain customer resources, our company will participate in a large number of domestic and foreign exhibitions every year, such as Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Delhi Exhibition in India, and Turkey Exhibition. , Pakistan Exhibition, etc.
Delivery
FAQ
1.Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
2.What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
3.Is your software interface in English?
English interface and Chinese interface are both available.
4.How is the training?
After purchasing our machine, first we will send you the installation and operation video, and then we will arrange engineers to go to your factory for installation and training, or you can arrange your engineers to study and operate in our factory.
