Product Details:
Payment & Shipping Terms:
|
| PCB Clamping: | Adjustable Pressure Pneumatic | No. Of Camera: | 2 Sets Of Imported Camera |
|---|---|---|---|
| Mounting Precision: | +0.04 Mm | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| No. Of Nozzles: | 12 PCS Single Module | Length* Width* Height: | 2550 Mm*1650 Mm*1550 Mm |
| High Light: | Magnetic Levitation LED Tube Mounting Machine,LED Tube Mounting Machine CCC,Windows 7 Smt Placement Machine |
||

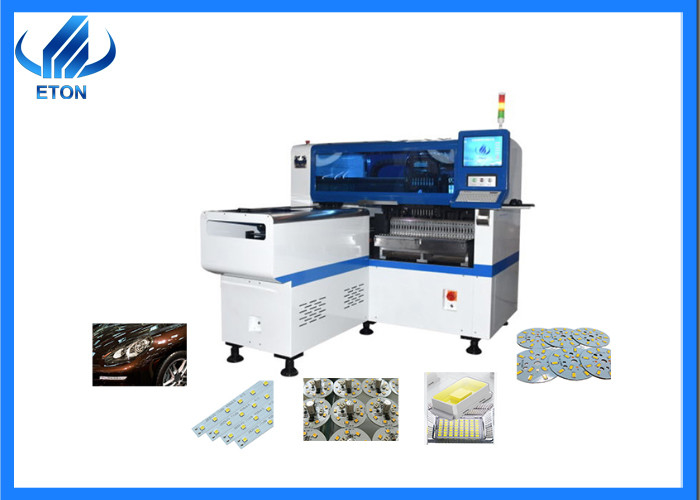

Good durability, excellent service, magnetic levitation LED tube mounting machine
Product
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: power driver, electric board, lens, bulb, household application etc.
Features
| Easy-to-handle | This is a fully automatic placement machine with a bilingual operation interface, which can be set up in Chinese and English. The fixing method of PCB board is adjustable pressure pneumatic. |
| High precision | With visual recognition system, two imported cameras, visual alignment, mark correction technology and optical positioning method, the position of the PCB board can be accurately identified and components can be installed quickly and accurately. |
| Good durability |
The wear resistance of screw rod is not easy to deviate and has high accuracy. The guide rail has strong bearing capacity and high stability. High-quality hardware configuration for 24-hour machine operation |
Technical parameter
| ET-E8S-1200 pick and place machine | ||
| Dimension | Length* Width* Height | 2550mm*1650mm*1550mm |
| Total weight | 1700kg | |
| PCB | PCB Size | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 sets of imported camera |
| Vision for the flight identification, mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 45000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 28PCS single module | |
| No. of nozzles | 12PCS single module | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Since its establishment in 2011 with Shenzhen, China, ETON is a technology enterprise dedicated to the development, production and sales of SMT high-speed placement machines. In 2020, ETON Jiangxi Industrial Park will be completed, equipped with an advanced processing and manufacturing center, and the production process will be further standardized and streamlined. The products are sold to more than 20 countries and regions including South Korea, India, Vietnam, Turkey, Egypt, Tunisia, etc.
Certificate
Delivery
FAQ
1.Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
2.What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
3.Is your software interface in English?
English interface and Chinese interface are both available.
4.What is the difference of automatic line and semi automatic line?
SMT production line mainly include stencil printer, pick and place machine, reflow oven.
The biggest difference between a fully auto line and a semi-auto line is the price and labor. Automatic line required higher cost but save must cost of labor, usually one operator is enough. But semi automatic line need at least 2 workers.
