Power Consumption: | 8KW | Dimension: | 3150mm*2250mm*1650mm |
---|---|---|---|
Total Weight: | 2500kg | PCB Length Width: | Max1200*300mm Min:100*100mm |
System: | Windows 7 | Software: | R&D Independently |
Conveyor Transmission: | Max Length:1200mm | Transportation Method: | Sea/land /rail /air |
High Light: | LED Bulb Making Machine SIRA,8KW LED Bulb Making Machine,24 Heads Pcb Making Machine |

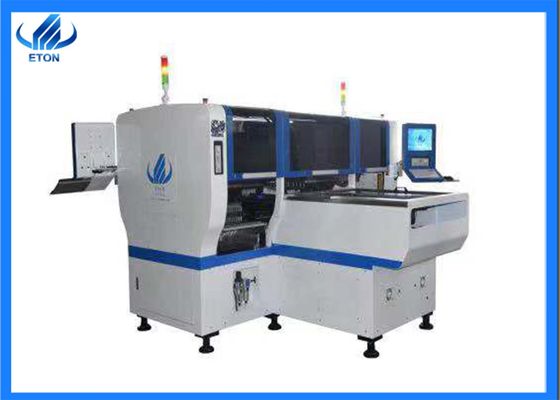

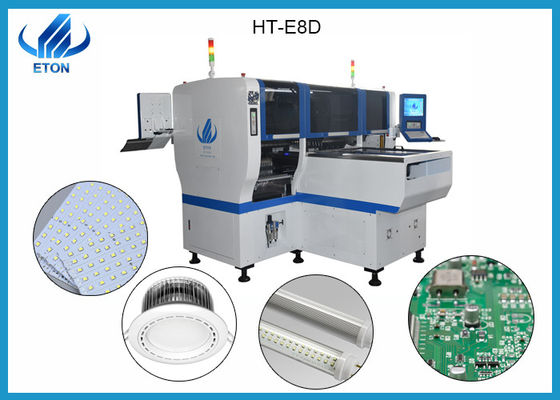

Double-module high-end multifunctional pick and place machine 48heads 90,000CPH SMT machine
Features:
E8D-1200 is a multi-functional placement machine for precise placement of standard electronic components. It can be freely equipped with PCB board feeding device and feeder base. It adopts linear motor, which runs faster, more stable, and can meet The needs of different customers for PCB boards or LED light boards have a wider range of applications.
(1) Equipment and technology:
1. Imported magnetic linear motor;
2. 4 sets of cameras, super-precision IC recognition technology;
3. High-speed motion controller;
4. 24 PCS precision intelligent placement headS;
5. Precision mechanical structure;
6. 48 PCS flexible and diverse feeders;
7. Electronic feeder feeding system;
8.Visual alignment flight identification, mark correction;
9. Non-stop material re-loading function;
10. Automatic optimization function after coordinate generation;
(2) Technical advantages:
1. The multi-functional universal placement machine adopts dual systems, dual drives, high-speed magnetic levitation motor + servo motor structure, which improves accuracy and stability, and the equipment runs with low noise and high speed.
2. The use of high-definition cameras can simultaneously identify components with higher efficiency, and the standard high-definition large camera can meet high-precision IC requirements.
3. Each placement head is controlled by an independent servo motor, and the placement head can be replaced directly, which is convenient and quick.
4. The PCB board feeding method can be freely selected, and the 48 feeders can be placed with different components to meet different needs.
The process of attaching the LED lens:

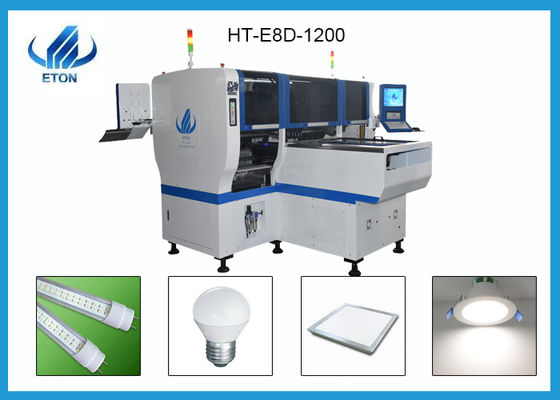

Technical parameter: HT-E8D-1200
|
HT-E8D-1200 |
L*W*H | 3150*2250*1650mm |
Total Weight | 2500kg |
PCB Length Width | MAX:1200*300mm MIN:100*100mm |
PCB Thickness | 0.5~5mm |
Mounting Mode | Group picking and separate placing, separate picking and separate placing |
Mounting height | <15mm |
No. of Camera | 4sets of imported camera |
Mounting Speed | 90000CPH |
Components Space | 0.2mm |
Feeders Station | 48PCS single module |
No. of nozzles | 24PCS single module |
Conveyor Transmission | MAX Length:1200mm |
Transmission Speed |
>500mm/sec |
