Product Details:
Payment & Shipping Terms:
|
| Name: | Conveyor | Apply To: | SMT Line & AOI Line |
|---|---|---|---|
| Suitable For Max PCB Size: | 1500 MM | Height: | 900-940 Mm |
| Motor: | Set Of Stepper Motor | Control: | Industrial Control Panel |
| High Light: | AOI Line Smt Conveyor Machine,Stepper Motor Smt Conveyor Machine,1.5m PCB Industrial Conveyor Machine |
||

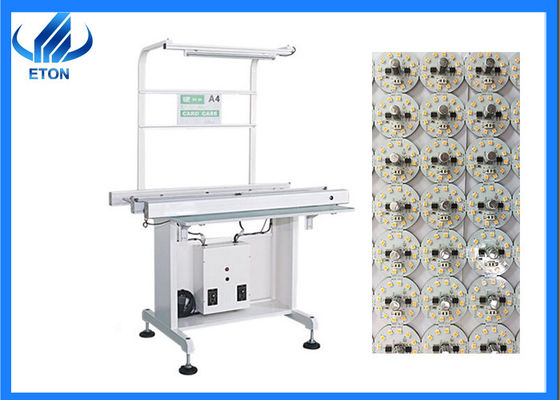

1.5m conveyor for SMT production line
Conveyor introduction
Conveyor machine suitable for connect SMT and AI production line. It is also suitable for buffering, inspection, testing or manual insertion of electronic components between PCBs. It is controlled by a programmable device (Siemens) and can be connected to any brand of machine signal. Spiral adjustment of PCB board width, convenient and accurate, the body is particularly heavy and not easy to move.
Features:
Available detection position for powder spraying on the surface of the aluminum trough frame iron plate
With lighting device and work chart indicator rack
The instrument board is convenient for manual placement of parts and preparations
Divided into two sets of transmission, can put two PCB boards (optional)
Product details
Module: ET-C1500
Steel frame structure, rail length: L=1500 mm
Width adjustment range: 50-390 mm
Transmission height: 900-940 mm
Transmission: 7MM flat belt conveyor
Speed: Adjustable from 0.5-9m/min
Control: Industrial control panel
Transmission direction: Single(Left to right or right to left)
One section of control, two sensors
Set of electric control box
Warranty and service
We provide one year warranty and wooden package for machine.
Machine install and training online
