15w Motor 35000cph Smt Production Line Machine For Electrical Products

15w Motor 35000cph Smt Production Line Machine For Electrical Products
15w Motor 35000cph Smt Production Line Machine For Electrical Products

Large Image :  15w Motor 35000cph Smt Production Line Machine For Electrical Products

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Supply Ability: 50 sets
Detailed Product Description
SMT Line: Automatic Line Capacity: 35000cph
Apply To: LED Lighting And Electrical Board Waranty: 1 Year
Package: Wooden Training: Free
High Light:

15w Motor Smt Production Line Machine

,

35000cph Smt Production Line Machine

,

Electrical Products Smt Placement Machine

Automatic SMT Line



Automatic SMT line Five features:

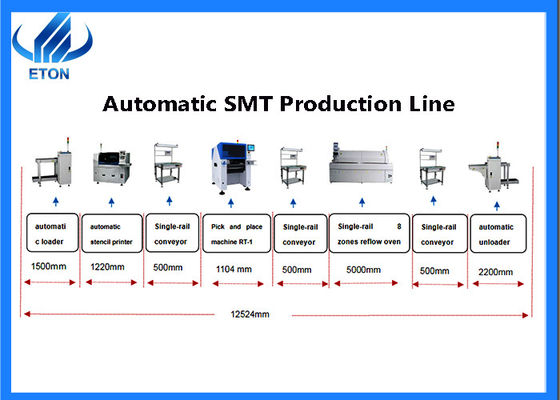

  1. Automatic SMT line include Loader, conveyor, solder paste stencil printer, pick and place machine, reflow oven , un-loader, etc.
  2. The fully automatic line can be run by only 1 operator, which saves labor costs.
  3. The full-automatic production line adopts a higher-end full-automatic solder paste printing machine, and the printed products have higher precision and better product quality.
  4. Fully automatic production line can maximize production capacity and reduce the problem of production decline caused by labor fatigue
  5. Fully automatic production line makes the whole factory more high-end, clean, tidy and large-scale, and customers trust more



Automatic SMT Line parameters

Loader machine main parameters
Transmission motor Taiwan 15w fixed speed motor
Structure Pneumatic clamp structure
Magazine Specifications L460*W400*H565 MM
Max size of PCB L450*W330 MM
No. of Full load storage board    50 PCS



Automatic stencil printer machine main parameters
Screen Frames Min Size 370*370 mm
Screen Frames Max Size 737*737 mm
Screen Frames Thickness 25-40 mm
PCB Min Size 50*50 mm
PCB Max Size 400*340 mm



Pick and place machine main parameters
Dimension 1200*1930*1500 mm
Max PCB length Width 400*350 mm
PCB Clamping Electric clamping
Mounting height No more than 22 mm
Mounting speed 30000-35000 CPH



Reflow Oven machine main parameters
Number of heating zones Up 8/bottom 8
Number of cooling zones Up 1/bottom 1
Length of heating zones 3000 mm
PCB Min Size 50*50 mm
Mesh belt width 400 mm
Conveyor speed 0-1500mm/min
Components height 50 mm



Un-Loader machine main parameters
Transmission motor Taiwan 15w fixed speed motor
Structure Pneumatic clamp structure
Magazine Specifications L460*W400*H565 MM
Max size of PCB L450*W330 MM
No. of Full load storage board 50 PCS



Conveyor machine main parameters
Steel frame structure, rail length L=500
Width adjustment range 50-390 mm
Transmission height 900-940 mm
Transmission 7 MM flat belt conveyor
Control Industrial control panel







Automatic SMT Line application

Automatic SMT Line suitable for apply to small electrical products. Such as led bulb, DOB, power driver, etc.

15w Motor 35000cph Smt Production Line Machine For Electrical Products 0



Automatic SMT Line service

We provide clients free machine install and training service, will sent engineer to your factory for machine install and training.

15w Motor 35000cph Smt Production Line Machine For Electrical Products 1
