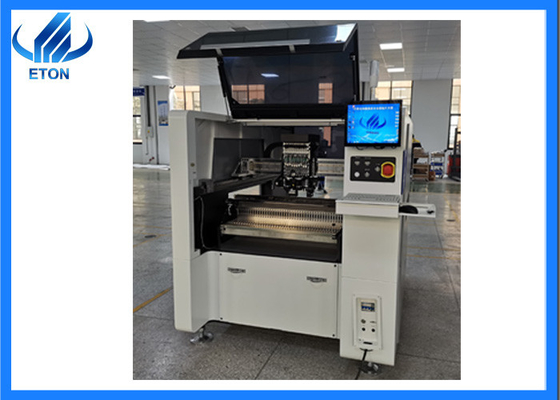

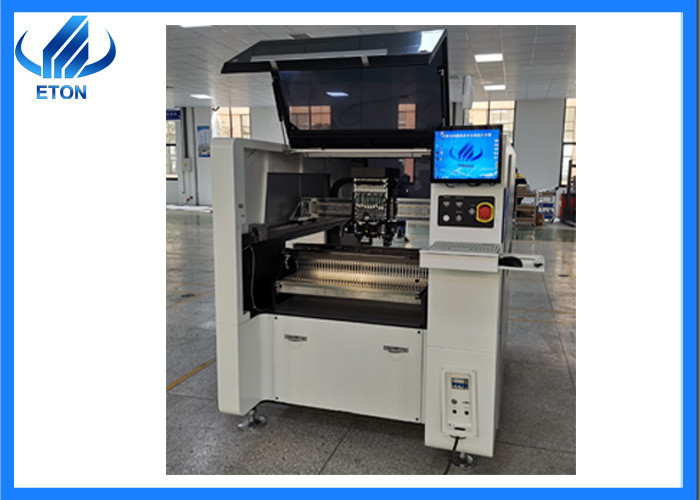

Touch Screen 0.2mm Component Pick And Place Machine 35000CPH

Touch Screen 0.2mm Component Pick And Place Machine 35000CPH
Touch Screen 0.2mm Component Pick And Place Machine 35000CPH

Large Image :  Touch Screen 0.2mm Component Pick And Place Machine 35000CPH

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB USD 36000~56000/sets
Packaging Details: Wooden case
Delivery Time: 15~30 days
Supply Ability: 50 pcs per month
Detailed Product Description
Warranty: 1 Year Payment: T/T
Speed: 30000-35000CPH Head: 10 PCS
Feeder Station: 32 PCS Weight: 2200kg
High Light:

Touch Screen Pick And Place Machine

,

0.2mm Component Pick And Place Machine

,

Led Bulb Making Machine 35000CPH

pick and place machine multifunctional led production line led bulb making machine



Company information

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine. And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation. The 2017newest items are hot selling.



Exclusive patented technology

Electronic feeder feeding system

Vision alignment flight identification,Mark correction

Auto-optimization after coordinates generated,etc.



Technical parameter

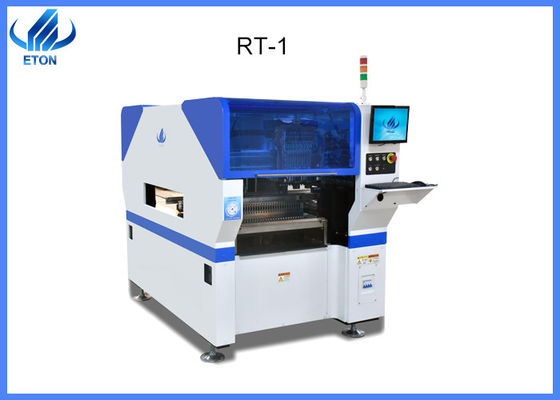

  • Model: RT-1
  • Length*Width*Height: 1200*1930*1500mm
  • Total Weight: 2200kg
  • PCB length width :Max:400*350mm Min:50*50mm
  • PCB clamping: Electric clamping
  • PCB thickness: 0.1-6mm
  • No.of camera: 2 sets
  • Feature of camera: Vision alignment,Mark correction
  • Mounting precision: Plus or minus 0.04 mm
  • Mounting mode: group picking and separate,separate picking and separate placing.
  • Mounting speed: 30000-35000CPH
  • Component space: 0.2mm
  • Transmission speed: >1500mm/sec
  • X,Y,Z axis drive way: high-end magnetic linear motor+servo motor



Operate system

The systems used by our machines are all independently developed,and easy to operate,usually 3 to 5 days training of operating is enough.



System Windows 7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard,Mouse



SMT line

Stencil printer,Conveyor,pick and place machine,oven machine.



Touch Screen 0.2mm Component Pick And Place Machine 35000CPH 0

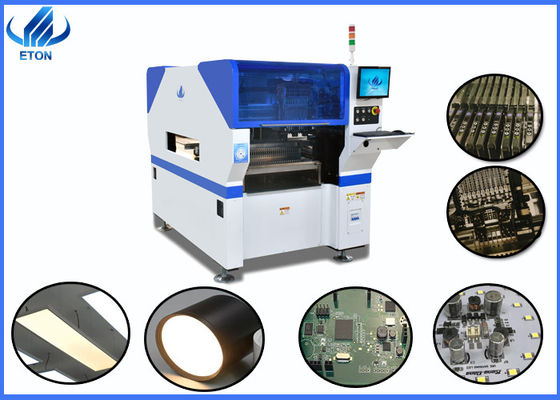

Application & components

Components:LED,capacitor,resistors,shaped components,etc.

Application:bulbs, panel lights, drivers, downlights, DOB,streetlight electric board and so on



Touch Screen 0.2mm Component Pick And Place Machine 35000CPH 1



Certification of honor

We have 9 invention patents,112 practical patents,12 software copyright



Touch Screen 0.2mm Component Pick And Place Machine 35000CPH 2



Packaging

We use vacuum wooden box packaging

Step 1:Film packaging

Step 2:Vacuum packing

Step 3:Wooden box packing



Remark

  • The delivery period is within four weeks after receiving the deposit
  • Term of payment:30% depositing on the date of signing contract,70% payment before delivery.
  • Quotation in valid:30 days



Questions you might ask

Why do we adopt the smart electronic feeders? Our machines adopt the smart electronic feeders which are more stable,universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cost and drop of materials effectively.

What's about the guarantee of the machines?



The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.



What are the main LED products o our machines for?



There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
What kind of service I can have, if I buy machine from ETON ? We will give you install and training. It is free for you. And we will sent engineer with you.
It’s hard to use the machine? No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.



Transportation

Touch Screen 0.2mm Component Pick And Place Machine 35000CPH 3
