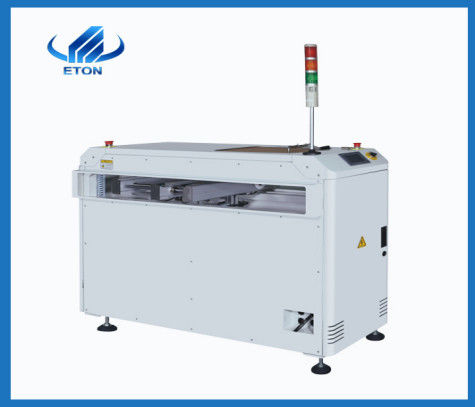

Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor

Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor
Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor

Large Image :  Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-L500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: 500 Mm Translational Conveyor Machine Size: L686xW1500xH1200mm
Rail Width: 50-390mm Process Lane: Single
Service Site: India Power Requirement: 220Vac 50/60Hz ,1ph
Weight: 140kg Service Method: Online Service, Send Engineers To Service
High Light:

Parallel PCB Conveyor

,

500mm PCB Conveyor

,

500mm Translational Conveyor

Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor



Professional Parallel transfer machine Automatic good quality transfer conveyor



Introduction to the translational conveyor:

Translational conveyor is a kind of parallel transition conveying equipment used between the two ends of an automated production line or between two conveying lines with deviations in the center line. It is mainly composed of frame components, transfer trolley, conveying guide rail, electrical control and other parts.

Translational conveyor is a horizontal connection parallel transfer mechanism especially for mounting or plug-in assembly line, used for PCB board sub-board transfer and transportation. It can meet the transmission needs of PCB boards with a width of 50-300mm and an appropriate length for mounting or short-insertion components. It is suitable for dislocation translation connection between SMT production line or DIP production line or other logistics system multi-line, and automatically transfer the workpiece (PCB or sheet material) to the production mode of the next specific equipment. It can use 2 to 4 patch lines, only 1 set of reflow soldering, or 2 plug-in lines only need one wave soldering.





Features:



1. It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.

2. The frame is made of thickened sheet metal.

3. Guide rail is made of special aluminum.

4. The shifting action is driven by a stepper motor.

5. The track is driven by a stepper motor.

6. Panasonic PLC programmable controller control.

7. Touch screen operation (display control).

8. Single/double shift trolley is optional.

9. Single/double track operation structure is available.

10. Compatible with SMEMA interface.

11. Smooth design buffer deceleration.

12. A variety of length shifts are available.





Specifications:

Model 500 mm translational conveyor
Dimension L686xW1500xH1200mm
Rail Width 50-390mm
Process lane Single
Trolley amount 1
Cycle time Approx 10 sec
Process height 900±20mm
Flow direction L→R or R→L
Board thickness Min 0.6mm
Weight 140kg
Power requirement 220Vac 50/60Hz ,1ph

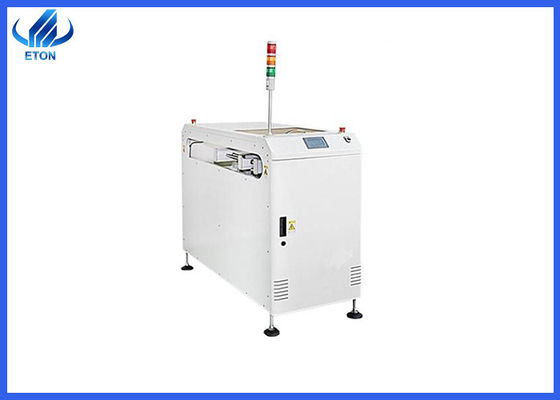

Professional Parallel PCB Conveyor Automatic 500mm Translational Conveyor 0



Advantages of ETON Automation Equipment Co., Ltd.:

1. Fully automated

2. Reliable quality

3. High production efficiency

4. Have more than 10 years of SMT machine and peripheral equipment design and production experience, seek the best SMT solution, and continue to develop and produce more high-end SMT machines.

5. The world's first, exclusive patented technology

6. Obtained a number of intellectual property technologies, including 112 utility patents, 12 software copyright patents, 9 invention patents, etc.

7. The product has a market share of 80% in the domestic LED market and is exported to more than 20 countries, including Vietnam, Turkey, Egypt, Iran, India and other countries.



Package and delivery:

1. Standard export vacuum waterproof package

2. Strong wooden package for ensure safely delivery of heavy and large equipment

3. Delivery: By air, sea and railway.





FAQ:



Q1: Is it safe during the delivery?

A: All the machine is packed safely, by standard strong wooden carton with vacuum package.



Q2: how is the breakdown rate of machine?

A: our machine is very stable, the breakdown rate is less than 0.001.



Q3: Does your machine have quality certificate?

A: Our machine have pass CE certificate, SIRA, ISO and have patent



Q4: Can you support whole SMT line?

A: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
