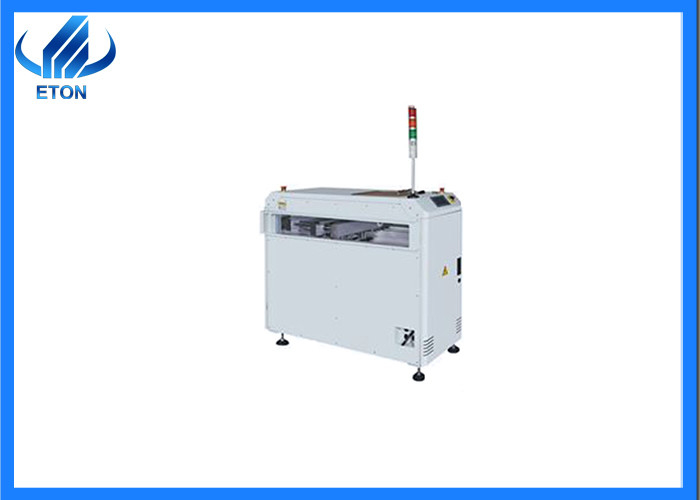

PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards

PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards
PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards

Large Image :  PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-L500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Transplanter, Transplanting Machine, Transfer Machine Model: 500 Mm Translational Conveyor
Dimension: L686xW1500xH1200mm Process Height: 900±20mm
Board Thickness: Min 0.6mm Power Requirement: 220Vac 50/60Hz ,1ph
High Light:

PLC PCB Conveyor

,

PCB Transplanting Machine

,

SIRA PCB Conveyor

PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards



High-quality sturdy transplanting machine for moving PCB boards



Structure



The basic components are mainly composed of rack components, transfer trolleys, conveying guide rails, and electrical controls. It can be used with industrial electronic products such as cylinder stroke switch and solenoid valve.



Features:



It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.

  1.  The frame is made of thickened sheet metal.
  2.  Guide rail is made of special aluminum.
  3.  The shifting action is driven by a stepper motor.
  4.  The track is driven by a stepper motor.
  5.  Panasonic PLC programmable controller control.
  6.  Touch screen operation (display control).
  7.  Single/double shift trolley is optional.
  8.  Single/double track operation structure is available.
  9.  Compatible with SMEMA interface.
  10.  Smooth design buffer deceleration.
  11.  A variety of length shifts are available.



Technical parameter



Model 500 mm translational conveyor
Dimension L686xW1500xH1200mm
Rail Width 50-390mm
Process lane Single
Trolley amount 1
Cycle time Approx 10 sec
Process height 900±20mm
Flow direction L→R or R→L
Board thickness Min 0.6mm
Weight 140kg
Power requirement 220Vac 50/60Hz ,1ph



Application



It is an auxiliary equipment in an industrial automation production line, mainly used for the pick-up and drop-off of PCB boards.



We can do for you about the SMT machine

1. If you need it, we can provide you with SMT whole line solutions.
2. We provide professional technical services.
3. If you have purchased our machine, we can provide you with a lifetime free upgrade software.
4. We provide engineers to the factory for free installation and training.



PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards 0



Certificate



Our company has obtained a number of patented technologies since its establishment, such as: 9 invention patents, 12 software copyright patents, 112 utility patents, and so on.



PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards 1

Partner



Our products are sold to more than 20 countries and regions including South Korea, India, Vietnam, Tunisia, Egypt, and Turkey.



PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards 2



PLC PCB Conveyor Sturdy Transplanting Machine For Moving PCB Boards 3



FAQ



Q: What can we do for you?

Answer: We provide SMT high-speed placement machines, and can also provide production line solutions. Professional technical support and service.



Q: What are your payment terms?

Answer: TT pays 30% in advance, and pays off the remaining 70% before shipment.



Q: Is this machine easy to use? If I have no experience, can I operate it well?

Answer: Yes, our machine is designed to be easy to use. It usually takes you 2-3 days to learn how to operate. If you are a technician, it will be much faster to learn.
