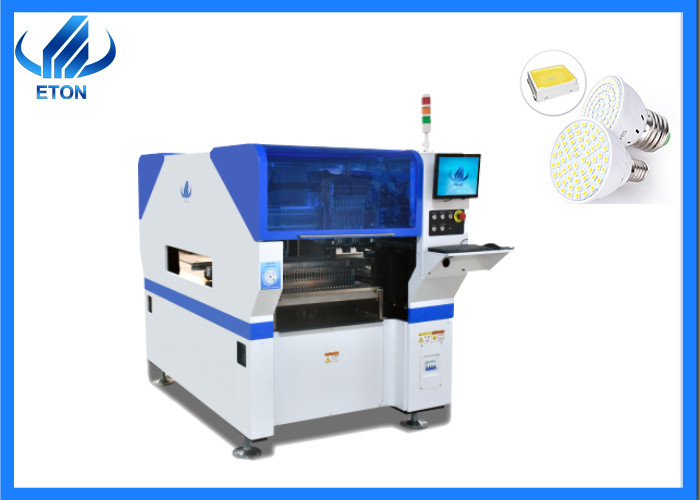

High Precision Pcb Placement Machine 50x50mm Bulb PCB Board

High Precision Pcb Placement Machine 50x50mm Bulb PCB Board
High Precision Pcb Placement Machine 50x50mm Bulb PCB Board

Large Image :  High Precision Pcb Placement Machine 50x50mm Bulb PCB Board

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Weight: 2200kg PCB Size: Max:400*350mm Min:50*50mm
Mounting Speed: 30000-35000CPH XYZ Axis Drive Way: High-end Magnetic Linear Motor + Servo Motor
No. Of Nozzles: 10 PCS Feeding Way: Electric Feeder With Double Motor
High Light:

High Precision Pcb Placement Machine

,

50x50mm Pcb Placement Machine

,

50x50mm Bulb PCB Board

High Precision Pcb Placement Machine 50x50mm Bulb PCB Board



Introduction



  1. Use high-precision industrial cameras to solve the precise placement of precision chips with at least 0402 chips.
  2. Imported customized suction nozzle is adopted, so that parts are not easy to lose when sucking and placing.
  3. Equipped with 10 placement heads and 32 feeding stations, it can suck 10 different materials at the same time without changing the nozzle.
  4. Double-motor electronic feeder, stable feeding, fast feeding speed, no need for repeated calibration.



What are the basic technical parameters of this machine?



RT-1 pick and place machine
Dimension Length* Width* Height 1200mm*1930mm*1500mm
Total weight 2200kg
PCB PCB Size Max:400*350mm Min:50*50mm
PCB Thickness 0.1-6mm
Vision System No. of camera 2 PCS
  Vision alignment, Mark correction
  Mounting speed 30000-35000CPH
  Components LED, capacitors, resistors, IC, shaped components, etc.
  No. of feeders station 32PCS
  No. of nozzles 10PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor



Why should we choose this machine?



RT-1 is Eton's new placement machine. This machine:

  1. Designed for different types of PCB boards. Using the latest high magnetic linear motor, the speed and accuracy are better than ordinary multi-function machines.
  2. Meet 0402 components, the maximum installation height can reach 22MM. Suitable for all kinds of drivers, power supplies, circuit boards, lenses, linear bulbs, home appliance control panels, etc.
  3. It is also a modular machine, which can be connected in series to save costs and increase output (for products with more materials).



Where does it apply?



The placement machine is a device used to achieve high-speed and high-precision placement of components. It is the most critical and complex equipment in the entire SMI and production. It is the placement equipment used in the production of SMT.





If I want to buy a line, what equipment do I need?



The first step: solder paste printing

Through the stencil template, the solder paste is leaked onto the PCB board

Step 2: pick and place machine

Placement part : The PCB board is sent to the placement machine, and the placement machine automatically picks up the components and places them on the PCB.

Step 3: reflow soldering

The PCB board with the installed components is sent to the reflow oven, and the reflow oven heats the components with solder paste and solders them on the PCB.

Step 4: conveyor

Test : Test the placement and soldering quality.





FAQ



Q1: How is the breakdown rate of machine?

A: Our machine is very stable, the breakdown rate is less than 0.001.

Q2: Is your software interface in English?

A: English interface and Chinese interface are both avaible.

Q3: Machine is easy to operate?

A: Machine is easy to operate, usually 3 to 5 days training of operating is enough.

Q4: Does your company have other machine?

A: Of course, our company has multi-function machines and special machines. If you need other machines, you can contact me at any time.
