Product Details:
Payment & Shipping Terms:
|
Transport Height: | 900±20mm | Conveyor Belt Type: | 4mm Wide Flat Belt |
---|---|---|---|
PCB Size: | 80*50~ (330-1500)*250 | Dimension(L*W*H)(mm): | (500~2500)*900*900/(The Height Of The Lamp Holder 1800) |
Approximate Weight (Kg): | About 60~100 | Item: | Conveyor |
High Light: | 4mm Wide Flat Belt Conveyor,4mm SMT Conveyor,4mm circuit board Conveyor |

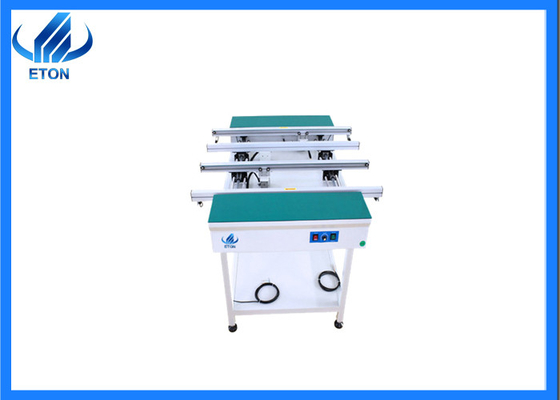

Easy-to-operate 4mm wide flat belt conveyor used in SMT production line
Introduction
Conveyor is equipped with one key to switch the conveying direction as standard, and the length of the machine can be customized according to customer requirements.
Technical parameter
Description | This equipment is used to transfer the circuit board in the production line |
Transport height | 900±20mm |
Transport direction | Left-Right; Right-Left; (Can switch with one key) |
Power Consumption | Single-phase AC110~220V (optional), up to 50 volt amperes |
Transport speed | 0.5~20 meters per minute (or customer specified) |
Conveyor belt type | 4mm wide flat belt |
Specification parameter
Model | BC250D | BC330D | BC390D |
PCB Size(L*W)(mm) | 80*50~ (330-1500)*250 | 80*50~ (460-1500)*330 | 80*50~ (510-1500)*390 |
Dimension(L*W*H)(mm) | (500~2500)*900*900/(The height of the lamp holder 1800) | (500~2500)*970*900/(The height of the lamp holder 1800) | (600~2500)*1050*900/(The height of the lamp holder 1800) |
Approximate weight (Kg) | About 60~100 | About 70~110 | About 80~120 |
Model | BC460D | BC510D |
PCB Size(L*W)(mm) | 80*50~ (510-1500)*460 | 80*50~ (550-1500)*510 |
Dimension(L*W*H)(mm) | (600~2500)*1130*900/(The height of the lamp holder 1800) | (600~2500)*1130*900/(The height of the lamp holder 1800) |
Approximate weight (Kg) | About 90~130 | About 100~140 |
Product Features
Standard with one key transfer direction, flexible and convenient;
Ergonomic design, so that the arm is not easy to fatigue;
The track has a load-bearing wheel, suitable for large veneer;
The use of smooth parallel width adjustment, optional automatic width adjustment;
Easy to replace the belt design;
Standard SMEMA socket.
Product optional features
According to customer requirements customized machine length;
Customize the number of stops according to customer requirements;
Imported permanent ESD belt is optional;
Optional LED lighting device.
Delivery
Packaging : vacuum packaging, packaging using wooden boxes.
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
After sales service:
Warranty period: one year, during this, any parts need to be repaired and replaced will be free.
Visit customers regularly and gather information
Provide latest information about technology and equipment
FAQ
How is you service?
If you buy our machine, we will arrange our engineer to your factory to install machine and training freely.
How is the warranty?
Standard warranty is one year, during warranty, any parts need to be repaired and replaced will be free.
What’s your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
Is your software interface in English?
English interface and Chinese interface are both available.
