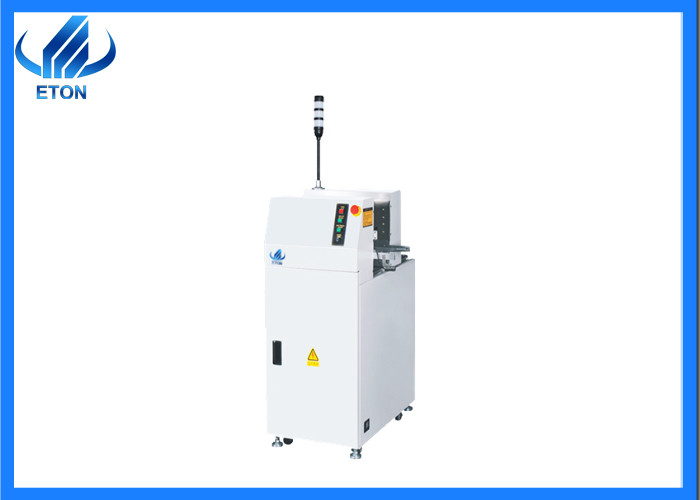

CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader

CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader
CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader

Large Image :  CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: DP330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Send Board Time: About 6 Seconds/customer Specified PCB Thickness: Maximum 0.8MM
PCB Size(L*W)(mm): 80*50-460*330 Dimension(L*W*H)(mm): 600*800*1200
Approximate Weight(Kg): Around 90 Air Pressure And Air Flow: 4~6Bar,Upto 10 L/min
High Light:

SIRA LED Light Production Line

,

CCC LED Light Production Line

,

Fuji Button Control Stacking Loader

High-quality Fuji button control stacking loader is used in SMT assembly line



Description



This equipment is used for light board feeding and receiving operations in the SMT production process.



Technical parameter



Send board time About 6 Seconds/customer specified
PCB Thickness Maximum 0.8MM
PCB Capacity Maximum: 150PCS(0.8mm)
Power consumption Single-phase AC110~220V (optional), maximum 150 VA
Air pressure and air flow 4~6Bar,Upto 10 L/min



Specification parameter



Model DP330 DP460
PCB size(L*W)(mm) 80*50-460*330 80*50-510*460
Dimension(L*W*H)(mm) 600*800*1200 600*1000*1200
Approximate weight(Kg) Around 90 Around 120



CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader 0



Product features



  1. Adopt automatic PLC control, Fuji button operation;
  2. Sheet metal weighted structure, Stable and reliable;
  3. Straight-through and stacked board working modes are optional;
  4. Using titanium steel pushing board blade, strong elasticity, not easy to deform;
  5. Standard SMEMA communication mode;
  6. Match a variety of receiving modes.



Honor



We have CCC, CE, SIRA, obtains a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 250000 chip per hour.



Delivery



Packing:

1) Light and small standard luggage;

2) Vacuum wood packaging for heavy and large equipment;

Shipping way:

1) By air ,for sample and small package ,worldwide express like DHL, UPS, FedFX, EMS....

2) By sea, for large package and quantity;

3) By car or other ways as customer requested;



CCC SIRA LED Light Production Line Fuji Button Control Stacking Loader 1



Services



1. We will inspect the goods before shipment;

2. Provide English user manual or operation video;

3. Provide 24-hour technical support;

4. 1 year free warranty for machine parts;

5. Arrange engineers to come to the factory for free installation training.



FAQ



Q1: Is electrical control developed independently?

A: Yes, the electrical control is by ourselves and have exclusive patent technology.



Q2: Are you a manufacturer or trading company?

A: Manufacturer. We have our own industrial park.



Q3: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.



Q4: When is the delivery date?

A: Delivery within 30 days after payment.



Q5: Does your company have any other machines?

A: Yes, we are a professional manufacturer of SMT placement machines. In addition to board loading machines, our company also has semi-automatic printing machines, placement machines, reflow soldering, connection stations, conveyor belts and other SMT production line equipment.
