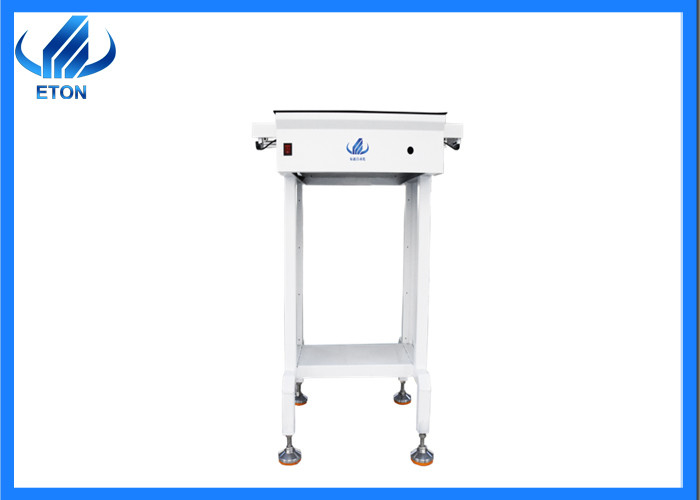

CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt

CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt
CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt

Large Image :  CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: BC250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Transport Height: 900±20mm Transport Direction: Left-Right; Right-Left;
Conveyor Belt Type: 4mm Wide Flat Belt PCB Size(L*W)(mm): 80*50~ (330-1500)*250
Dimension(L*W*H)(mm): 500~2500)*900*900/(The Height Of The Lamp Holder 1800) Approximate Weight (Kg): About 50~90
High Light:

Single Phase PCB Conveyor

,

SIRA PCB Conveyor

,

4mm Wide smt conveyor

Simple operation with 4mm wide flat belt PCB conveyor for pick and place machine



Introduction



This equipment is mainly used for the transmission of circuit boards in the SMT production line. It is conveyed by a 4 mm wide flat belt, and its conveying speed is 0.5-5 meters per minute. It can also be adjusted according to customer requirements.



Technical parameter



Description This equipment is used to transfer the circuit board in the production line
Transport height 900±20mm
Transport direction Left-Right; Right-Left; (Can switch with one key)
Power Consumption Single-phase AC110~220V (optional), up to 50 volt amperes
Transport speed 0.5~20 meters per minute (or customer specified)
Conveyor belt type 4mm wide flat belt



Specifications parameter



Model BC250 BC330 BC390
PCB Size(L*W)(mm) 80*50~ (330-1500)*250 80*50~ (460-1500)*330 80*50~ (510-1500)*390
Dimension(L*W*H)(mm) (500~2500)*900*900/(The height of the lamp holder 1800) (500~2500)*970*900/(The height of the lamp holder 1800) (600~2500)*1050*900/(The height of the lamp holder 1800)
Approximate weight (Kg) About 50~90 About 60~100 About 70~110



Model BC460 BC510
PCB Size(L*W)(mm) 80*50~ (510-1500)*460 80*50~ (550-1500)*510
Dimension(L*W*H)(mm) (600~2500)*1130*900/(The height of the lamp holder 1800) (600~2500)*1130*900/(The height of the lamp holder 1800)
Approximate weight (Kg) About 80~120 About 90~130



CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt 0



Product Features



  1. The movable working table, Visible Board document and lighting rack are arranged on the basis of the conveyor;
  2. The lighting brightness, operation height and other user-friendly design, the operation is more efficient, convenient and practical;
  3. Green flat imported anti-static transmission belt, durable, easy to replace;
  4. Sheet metal weighted structure, overall stable, not easy to shift;
  5. PLC control system through SMEMA communication.



Product optional features



  1. Two-segment transmission or multi-segment transmission (the minimum length of each segment is 0.5 meters);Two sections of independent adjustment width mode;
  2. Install cooling fan, blocking cylinder, shelving table, dust cover and other additional configurations;
  3. Special program requirements such as checking function with scanner and NG/OK communication function with AOI.



Application



The conveyor is suitable for the connection between SMT and AI production lines. It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components, and can be used for signal connection with other equipment.



CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt 1



Delivery



CE Certificated Single Phase PCB Conveyor With 4mm Wide Flat Belt 2

FAQ



Do you have any service offices overseas?

We have service office in India, and have India engineer in Delhi and Mumbai, can support you.

What do you do if something goes wrong with my machine?

First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.

Is your software interface in English?

English interface and Chinese interface are both available.

How is the training?

After purchasing our machine, first we will send you the installation and operation video, and then we will arrange engineers to go to your factory for installation and training, or you can arrange your engineers to study and operate in our factory.
