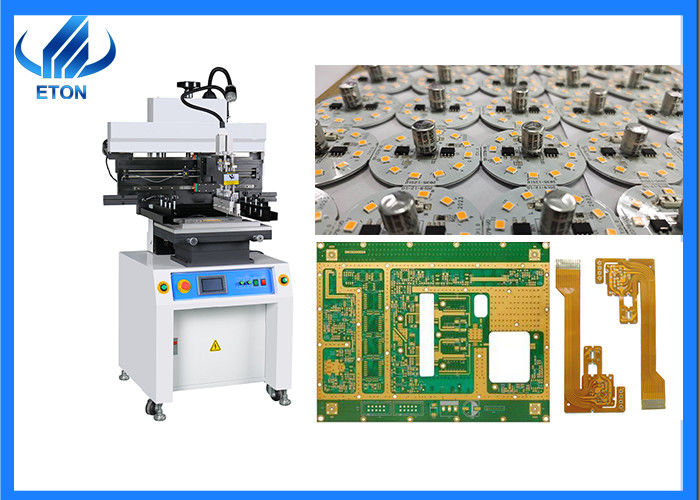

High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer

High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer
High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer

Large Image :  High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: ET-S600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Machine Name: SMT Machine/stencil Printer Machine PCB Size: 600*300-400 Mm
Apply To: LED Lighting And Electrical Board Weight: 250 Kg
SMT Line: Semi Automatic Line Machine Warranty: One Year
High Light:

High Stable SMT Mounting Machine

,

PCB SMT Mounting Machine

,

PCB Solder Paste Stencil Printer

High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer



Stencil Printer Machine features

  1. Adopt high-precision linear guide and ultra-quiet motor, Squeegee printing is more stable.
  2. Use imported electrical raw materials, Stable and reliable performance.
  3. Suspended scraper design can automatically adapt to uneven surfaces.
  4. Input total power supply voltage: single-phase 220V 50/60Hz, total power 100W.
  5. The printing base can be lifted up by 45° and can be fixed, which is convenient for the loading and unloading of the scraper and the cleaning of the stencil.
  6. The Printing Block can be moved forward and fixed, which is convenient to match the position of the stencil mesh pattern to obtain better printing results.
  7. The mesh support arm can be adjusted left and right separately, suitable for 550～650mm stencil.

Printer main parameters



1 Machine name: Semiautomatic stencil printer   5 Dimension 700*1050*1650 mm
2 PCB Sizes: 600*300/600*350/600*400mm   6 Platform size 320*650 mm
3 Printing accuracy ±0.05mm   7 Weight 250kg
4 Repeatability ±0.02mm   8 Printing cycle 5-20s

High Stable SMT Mounting Machine PCB Solder Paste Stencil Printer 0

RFQ



1. What is this machine suitable for ?

A: This machine is semiautomatic, suitable for many kind of PCB products, such as led bulb, panel, display, led tube light, etc. Simple PCB by using semiautomatic stencil printer machine

2. Do you have other SMT Machine optional ?

A: Yes, we have different SMT Machines, such as Pick and place machine/ Reflow oven machine/Loader machine/Conveyor/Solder mixer/etc. Welcome contact us for more details.

3. How many workers inquiry in semiautomatic SMT Line ?

A: For semiautomatic SMT Line usually need around 2-3 workers.
