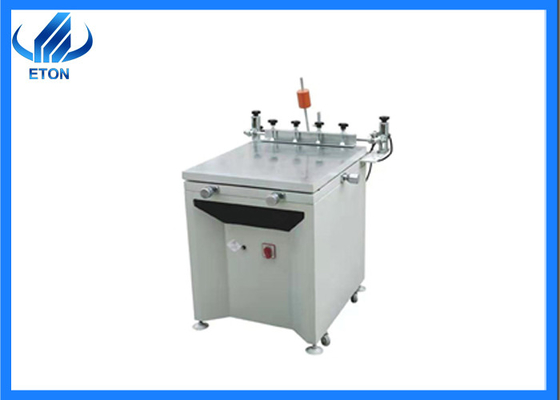

PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh

PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh
PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh

Large Image :  PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: PCB Manual stencil printer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Model: PCB Manual Stencil Printer Size Of Workbench: 300*400 Mm
Max Printing Size: 250*400 Mm Max Screen Frame Dimension: 370*470 Mm
Outline Package Size: 610*450*220 Mm Printing Speed: Manul Control
High Light:

PCB Manual Stencil Printer

,

PCB smd stencil printer

,

SIRA manual stencil printer

PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh



The worktable adopts a manual printing machine for vertical and horizontal adjustment of PCB steel mesh

Product description

Manual high precision screen printing is the equipment which is used for printing or leakage printing technology. The location is mainly by hand to pick-and-place PCB board and print. It has a low-cost and easy to use, easy to learn, high efficient, it is suitable for small and medium manufacture, multi-species researchdevelopment and production.

Specification



Model PCB Manual stencil printer
Size of workbench 300*400 mm
Max printing size 250*400 mm
Max screen frame dimension 370*470 mm
Printing speed Manul control
Thickness of printer matter 0-80 mm
Vertical and horizontal adjustment volume of workbench 10 mm
Hight of printing platform 220 mm
Repeatability precision 0.01 mm
Location mode Shape or benchmark hole
Boundary dimension(W*D*H) 540*370*380 mm
Net Weight 21.15 kg
Gross weight 22.075 kg
Outline package size 610*450*220 mm


PCB Manual Stencil Printer For Vertical Horizontal Adjustment Of PCB Steel Mesh 0
Features

1.can be flat, curved surface printing, manual operation manual easy to adjust, accurate and reliable.
2.manual stencil printer machine size of workbench: 300*400 mm manual screen printing machine suitable for small-scale screen printing products to use, this device easy to adjust, accurate and frame not included. They are customer items.
3. Simple manual stencil printer machine can be used in several specifications, suitable for all sizes of hand-printed silk screen.

Scope of application

Printed circuit boards, thick film integrated circuits, liquid crystal devices, membrane switches and printed resistors, etc.

Matters needing attention

Check if the four foot pads cling the ground before operating, to ensure the printer smooth and steady without shaking;
Clean all the accessories of platform such as thimble, fixation unit and filler;
Confirm the workpiece, PCB boards and steel stencil which need to print.

What are the advantages and disadvantages of manual printing?

Advantages: low price, simple result, more convenient operation
Disadvantages: poor positioning accuracy, it is a product with low accuracy requirements

FAQ

1.Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3.What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5.Why choose us?
Leading SMT Supplier in China; In the LED industry market share is in an absolute leading position.
