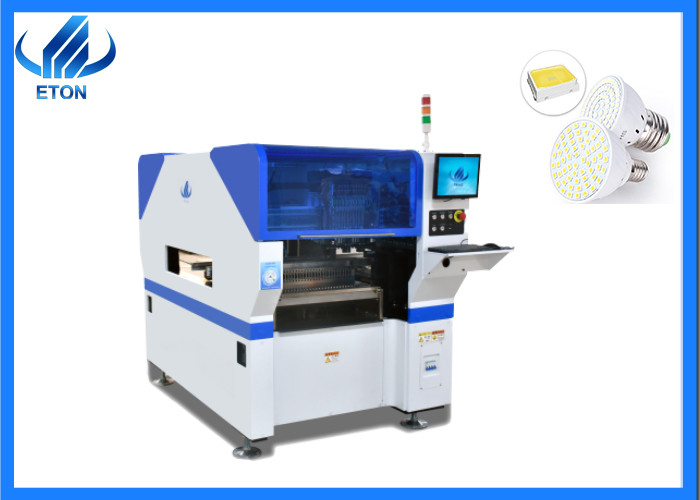

ETON LED Bulb Pick And Place Machine In Led Production Line

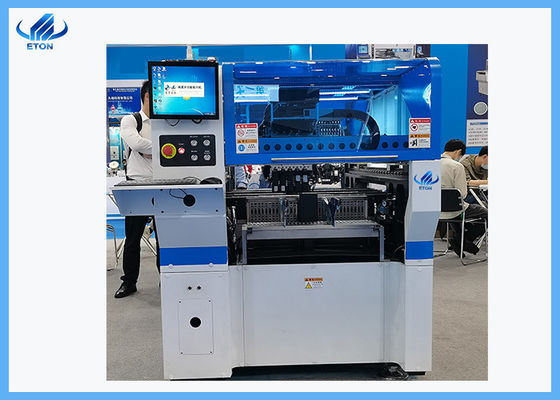

ETON LED Bulb Pick And Place Machine In Led Production Line
ETON LED Bulb Pick And Place Machine In Led Production Line

Large Image :  ETON LED Bulb Pick And Place Machine In Led Production Line

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: RT-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
PCB Size: Max:400*350mm Min:50*50mm PCB Clamping: Electric Clamping
No. Of Camera: 2 PCS Mounting Speed: 30000-35000CPH
No. Of Nozzles: 10PCS No. Of Feeders Station: 32PCS
High Light:

LED Bulb Pick And Place Machine

,

ETON Pick And Place Machine

,

ETON smt pick and place machine

ETON LED Bulb Pick And Place Machine In Led Production Line



ETON Low cost LED Bulb making pick and place machine in led production line





Product description



Single module multifunctional mounting machine

Vision alignment, Mark correction

Components: LED, capacitors, resistors, shaped components, etc

Application: led bulb, panel, down light, ceiling light, street light, etc



Technical parameter



RT-1 pick and place machine

Dimension

Length* Width* Height

1200mm*1930mm*1500mm

Total weight

2200kg

PCB

PCB Size

Max:400*350mm  Min:50*50mm

PCB Thickness

0.1-6mm

PCB Clamping

Electric clamping



Mounting mode

Group picking and separate placing, separate picking and separate placing

O.S.

System

Windows 7

Software

R&D independently

Display

Touch screen monitor

Vision System

No. of camera

2 PCS



Vision alignment, Mark correction



Mounting precision

+0.04mm



Mounting speed

30000-35000CPH



    Components

LED, capacitors, resistors, IC, shaped components, etc.



No. of feeders station

32PCS



No. of nozzles

10PCS



XYZ Axis drive way

High-end magnetic linear motor + servo motor



Feeding way

Electric feeder with double motor



ETON LED Bulb Pick And Place Machine In Led Production Line 0

ETON LED Bulb Pick And Place Machine In Led Production Line 1



Application of placement machine



LED industry

Such as: table lamp, street lamp, ceiling lamp, display screen, lamp tube, etc.

electric industry



Such as: precision products such as notebooks and mobile phones



Company



Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise, double soft enterprise.

ETON LED Bulb Pick And Place Machine In Led Production Line 2



Certificate



ETON LED Bulb Pick And Place Machine In Led Production Line 3



Exihibition



We participate in many exhibitions at home and abroad every year (except during the epidemic).

Foreign exhibitions: Mumbai, India, Delhi, Egypt, Turkey, Pakistan, Thailand, etc.

Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.

ETON LED Bulb Pick And Place Machine In Led Production Line 4



Packaging and payment



 ETON LED Bulb Pick And Place Machine In Led Production Line 5



ETON LED Bulb Pick And Place Machine In Led Production Line 6



After sales service



1. Maintenance period 1 year

One year warranty, during warranty, any parts need to be repaired and replaced will be free.

2. Software and hardware lifetime maintenance

Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

3.Vist customers regualarly and gather information

Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.

4. Provide latest information about technology and equipment

We give professional technology suggestion with our clients.And share the updates news to our clients



FAQ



Q1:  What is the direction of transmission of machines?

The transmission direction of this machine is both direction

Q2:   Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q3:   What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q4:   Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.
