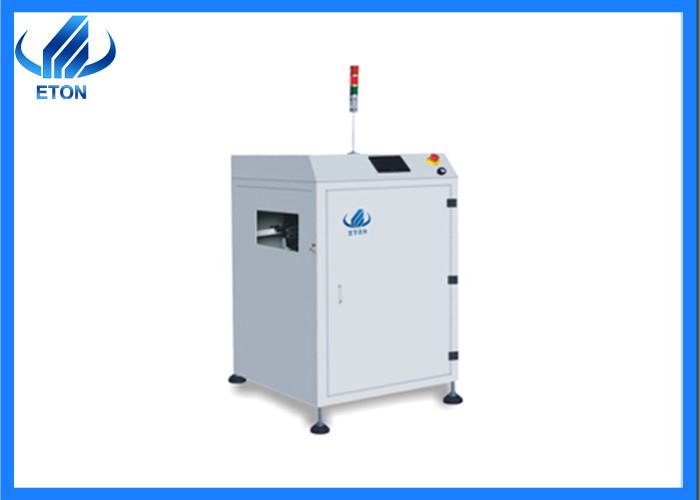

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader
200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader

Large Image :  200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: VP330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Vacuum wooden box packaging, including straps and fixing nails to strengthen the firmness of the packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: SMT Vacuum Loader Model: VP330
PCB Size: 80*50-(460-1200)*330mm Dimension: (600-1300)*950*1200mm
Loading Time: Around 6s Or Customer Specified PCB Capacity: Max.200 Pcs(0.6mm Thick)
High Light:

PCB board Led Bulb Assembling Machine

,

SMT Led Bulb Assembling Machine

,

SMT vacuum loader

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader



New products LED production line Can hold 200 pcs of PCB board SMT vacuum loader





What is the purpose of the vacuum loader?

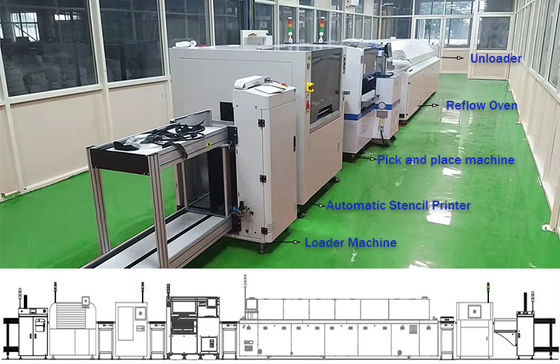

For the source of the SMT production line, the stacked bare PCB boards are rhythmically uploaded to the PCB production line to achieve the boarding function according to the required board action requirements of the rear equipment.





What’s the feature about the vacuum loader?



  • PLC control, color man-machine operation, can be automatically loaded on the board, without manual operation;
  • Using independent multiple sets of vacuum generating systems, the adsorption is stable and reliable;
  • Equipped with sound and light prompt alarm system, text prompts for abnormal information, operation and maintenance are very simple;
  • PCB vacuum suction machine that can transport 1.2 meters can be customized;
  • The board-mounted platform automatically rises and falls, and the boarding speed is fast (about 6 seconds)



Can you talk about the vacuum loader in details?



Technical parameter
Loading time Around 6s or customer specified
PCB thickness Minimum 0.6mm
PCB capacity Max.200 pcs(0.6mm thick)
Power consumption

Single-phase AC110-220(optional), maximum

200VA

Air pressure and air flow 4-6bar, up to 30L/min
Specifications parameter
Model PCB size Dimension
VP330 80*50-(460-1200)*330mm (600-1300)*950*1200mm
VP460 80*50-(510-1200)*460mm (600-1300)*1100*1200mm

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 0

Company information



Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007.

  • Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
  • Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
  • Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month
  • Good and professional service. Provide engineer Door-to-door service, support video online training, video training share, free replaced machine core part during warranty. And also we could provide professional SMT line solution.

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 1



Honor



Won a national high-tech enterprise; 2015 industry technology innovation award; the 4th China LED pioneer award, etc.

Obtain a number of technical invention patents and technical property rights:

9 invention patents,

12 software copyrights ,

112 practical patents, etc.



200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 2



Exhibition



Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:

Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.;

Domestic: Guangzhou Guangya Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.

200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 3



Servieces



200 pcs PCB board Led Bulb Assembling Machine SMT Vacuum Loader 4



FAQ



1) Do you have oversea after sale service?
We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India and Egypt office and local engineer, etc.
2) How is the training?
After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we
will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
3) It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know
how to make it more intelligent and operate friendly.
