SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle
SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle

Large Image :  SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Model Number: ET-4035
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD20000-27500/pc
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Supply Ability: 50 sets per month
Detailed Product Description
PCB Min Size: 50*50mm PCB Max Size: 400*340mm
PCB Warpage: Max PCB Diagonal 1% PCB Thickness: 0.2-6mm
Transport Height: 900±40mm Transport Speed: Max 1500mm/Programmable
Screen Frames MAX Size: 737mm Screen Frames PCB Max Size: 420mm
Squeegee Speed: 6-300mm/sec Cleaning System: Dry/Wet/Vacuum(Prorammable)
High Light:

SMEMA Interface Automatic Stencil Printer

,

Win7 Automatic Stencil Printer

,

SMEMA Interface SMT Printer

SMEMA Interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle



Full Automatic vision smt solder stencil printer machine

General Description

Feature:

1. Standard SMEMA link port. able to connect with most market smt machine

2. NC slide way adjustment for conveyor width and speed.

3. SMEMA interface,

4. Dry-type, wet-type and vacuum-type with arbitrary combination for stencil cleaning system..

5. ETON self development Vision alignment system

6. Built-in software diagnosis system.

7. Standard stainless steel squeegee, unique design to improve the lifespan of squeegee blade.











SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 0

Parts introduction:

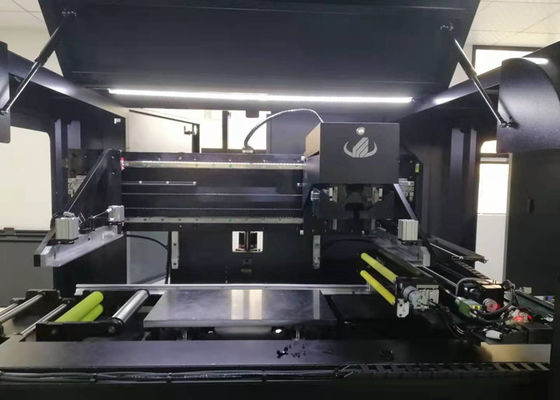

Suspended print head with programmable pressure automatic adjustment system:

1. Programmable pressure automatic adjustment system support visible pressure values of front and rear squeegees and ensures accurate pressure control.
2. Pressures of front and rear squeegees are separately adjusted, to compensate pressure imbalance caused by fatigue deformation of squeegee to prevent from different printing quality in front and rear.



SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 1

PCB clamping and support system.

1. Magnetic pins;
2. PCB flexible side clamping system to ensure no bending and deformation during PCB clamping
3. Elastic Z-direction pressing tablets (optional)
4. Flexible automatic pins(optional)

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 2



Automatic clean system

Dry-type, wet-type and vacuum-type with arbitrary combination for stencil cleaning system.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 3



Technical Parameter

Model

ET-4035

Dimension(MM)

1100(L)* 800(W)* 1400(H)

Mass/weight

600KG

Board Dimension

Max:400*340mm Min:50*50mm

PCB Warpage

Max.FPCB diagonal 1%

Squeegee pressure

0-10kg/cm2

Squeegee speed

6-300mm/sec

Squeegee angle

550 (standard)

Squeegee angle

Stainless steel standard,rubber squeegee

Repeat position accuracy

±0.01mm

Printing accuracy

±0.025mm

Cycle time

≤9s(excluding printing and clean)

Power input

AC:220±10%, 50/60HZ, 3KW

FPCB transport over plate height

20mm



SMT production line equipments

We have full range of pick and place machine production line equipment,So we have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment
Main Products: SMT LED Pick and Place Machine,SMT LED Reflow Oven,SMT LED Stencil Printer,SMT Production Line,LED Assembly Line,SMT LED Machine.



SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 4

Why choose us

Our company was established in 2011 with over 10years experiences in high-speed pick and place machine. We are the largest high tech manufacturer in China with strong capability of design ,R&D, manufacture, sales&services. “High efficiency””High quality”and “High Stability ” are he core technology of ETON. We got 9 invention Patents, 112 practical patents,12 software copyrights. Moreover, ETON has invented the fastest automatic pick and place machine with speed 250000CPH. We got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries.We expanded our plant and built a new bigger industrial park in Jiangxi Province.



1. Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.

2. Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .

3. ŽHigh quality: We have strictly quality control during all production from raw materials to the finished machine.

4. High efficiency : All machines parts are made by ourselves, so it’s convenient to control the time schedule and quality timely.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 5







SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 6



Packing

All machines are packed with vacuum and wooden packing like the one in the pictures.

Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or

TNT or as your request for parts. --- Sea shipping for machine.

Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 7



Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 8

Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 9

Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oiin the wood carton, effectively prevent collision and shock.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 10



For spare parts usually we’ll pack it separately with box.This is the packing reference for the feeders and some spare parts .

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 11SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 12



We got 9 invention Patents, 112 practical patents,12 software copyrights.

  • Electronic feeder feeding system.

  • Vision alignment flight identification, Mark correction.

  • Auto-optimization after coordinates generated ,etc.

  • Non-stop material re-loading function.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 13

After sale service

  • Maintenance period 1year

  • One year warranty, during warranty, any parts need to be repaired and replaced will be free.

  • Software and hardware lifetime maintenance

  • Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

  • Visit customers regularly and gather information

  • Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.

  • Provide latest information about technology and equipment

  • We give professional technology suggestion with our clients.And share the updates news to our clients

FQA

1. Q: Are you a trade company or a manufacturer?

We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.



2. Q: What is your delivery date?

The delivery date is about 20 days upon the full payment.



3. Q: What is your payment terms?

100% payment before delivery or 50% deposit in advance and the rest before shipment.



4. Q: How is the warranty?

  • 1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.

  • 2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.

  • 3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

5. What are your advantages?

Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust



6. The products you are advertising are in stock?

A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .



7. How can I buy this machine from you?

  • A. Consult us about this product on line or by e-mail.

  • B. Negotiate and confirm the final price , shipping , payment methods and other terms.

  • C. Send you the proforma invoice and confirm your order.

  • D. Make the payment according to the method put on proforma invoice.

  • E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

  • And 100% quality check before shipping.

  • F.Send your order by air or by sea.

SMEMA interface Fully Automatic Stencil Printer 55 Degree Squeegee Angle 14
