Product Details:
Payment & Shipping Terms:
|
| Dimention(mm: | 2550*1650*1550 | PCB Length Width: | Max：1200*500mm Min：100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
| System: | Windows 7 | Mounting Precision: | ±0.04mm |
| Mounting Speed: | 45000CPH | Mounting Height: | ＜15mm(Automatic Changing) |
| Components: | LED Chip, Capacitors, Resistor, IC, Shaped Components.etc. | Components Space: | 0.2mm |
| High Light: | 45000 CPH LED Light Maker Machine,4kw LED Light Maker Machine,45000 CPH Pick And Place Machine |
||

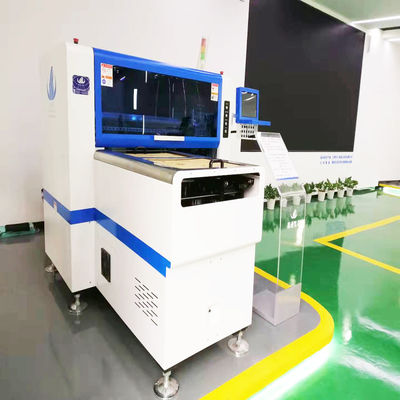

45000 CPH Automatic LED Light Maker Machine Pick And Place Machine
Hot Sale 12 Nozzles Head 45000CPH Automatic Led Light Maker Machine Pick And Place Machine

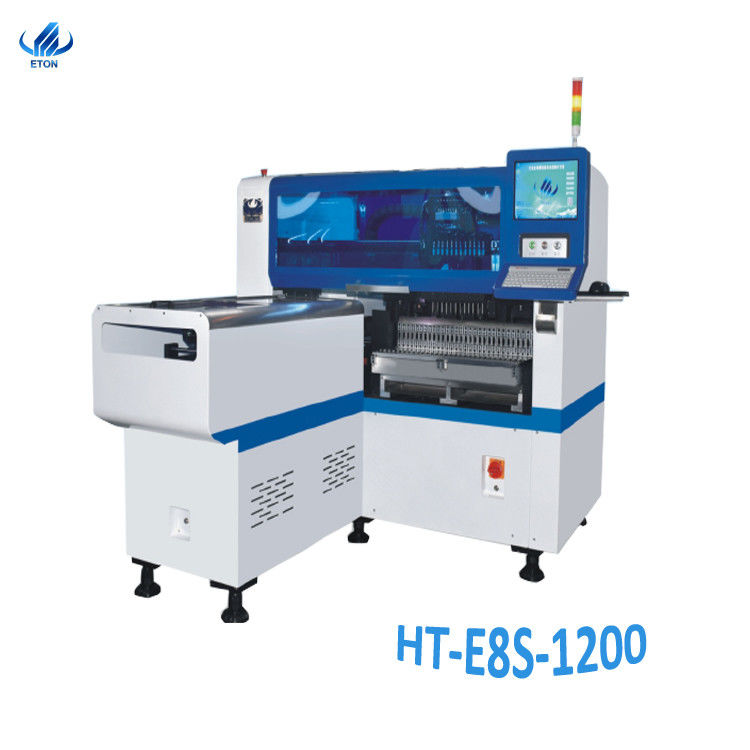

HT-E8S-1200 is Multifunctional fully automatic pick and place machine.
12 nozzle heads can pick components at the same time.
Use Drag chain adopt high-end magnetic linear motor Imported from Germany IGUS.
2 sets of imported camera can vision for fight identification, mark correction.
It is suitable for kinds of product to produce, such as: power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
| Model | HT-E8S-1200 |
| Dimension(mm) | 2550*1650*1550 |
| Total weight | 1700kg |
| PCB length width | Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Display | touch screen monitor |
| Input device | keyboard mouse |
| No.of camera | 2 sets of imported camera |
| vision for flight identification, mark correction | |
| Mounting precision | ±0.04mm |
| Mounting height | ＜15mm(Automatic changing) |
| Mounting speed | 45000CPH |
| Components | LED chip, capacitors, resistor, IC, shaped components. etc. |
| Components space | 0.2mm |
| Power | 380AC 50Hz |
| Power consumption | 4kw |
| Operating environment | 23℃±3℃ |
| Conveyor transmission | MAX length:1200mm |
| Transmission speed | ≤1000mm/秒 |
| Transmission direction | both direction(option) |
| Transmission mode | Auto online drive |
| No.of.feeders system | 28PCS single module |
| No.of .head | 12PCS single module |
| Feeding way | electric feeder with double motor |
Main features
Company show
We are one of leading manufacturer of SMT machine in China. Pick and place machine is our main product, which have multifunctional and high speed machine. Also, we provide SMT line solution.
We have over 10 LED lighting field experience sharing, provide the most suitable program to every clients, eg: India, Vietnam, Tunisia, Egypt, Turkey , Russia, Brazil, etc.
Professional R&D Team
Certificate
Top Brand in China
Free install & training
Software upgrade freely whole lifetime
Exhibition show
Our company has many exhibition, domestic and foreign. For example: India, Istanbul, Turkey, Guangzhou Guanya, Chongqin LED lighting, etc.
Related machine
Such as: pick and place machine, reflow oven, loader, conveyor, etc.
| Q: Can we customize the machine? |
|
A: Sure, all of our machine can be customized.
|
| Q: Is it easy to operate ? |
| A: Yes, the soft language is English or Chinese. And we can provide free install and training. If there is any doubt in the process of operating the machine, please feel free contact us. In addition, we have local engineer in Turkey, India, Egypt . |
| Q:How about the warranty |
| A: We support 1 year warranty from delivery and lifetime maintenance service. Provide one to one after-sale service. |
| Q: Do you have the product in stock? |
| A: Sometimes we have some in stock for ship, but we need do machine test before shipping. Usually, the delivery date is about 20 days upon the full payment. |
