Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*1500 | Total Weight: | 2000kg |
|---|---|---|---|
| PCB Length Width: | MAX:450mm*350mm MIN:80*80mm | PCB Thickness: | If＜0.6mm Need Jig |
| System: | Windows 7 | Mounting Height: | Standard:≤15mm(height Customizable) |
| Mounting Speed: | 40000CPH | Components Space: | 0.2mm |
| Power Consumption: | 4KW | XYZ Axis Drive Way: | High-end Magnetic Linear Motor+servo-motor |
| High Light: | 40000 CPH SMT Mounting Machine,10 Head SMT Mounting Machine,SMT Pick And Place Machine |
||

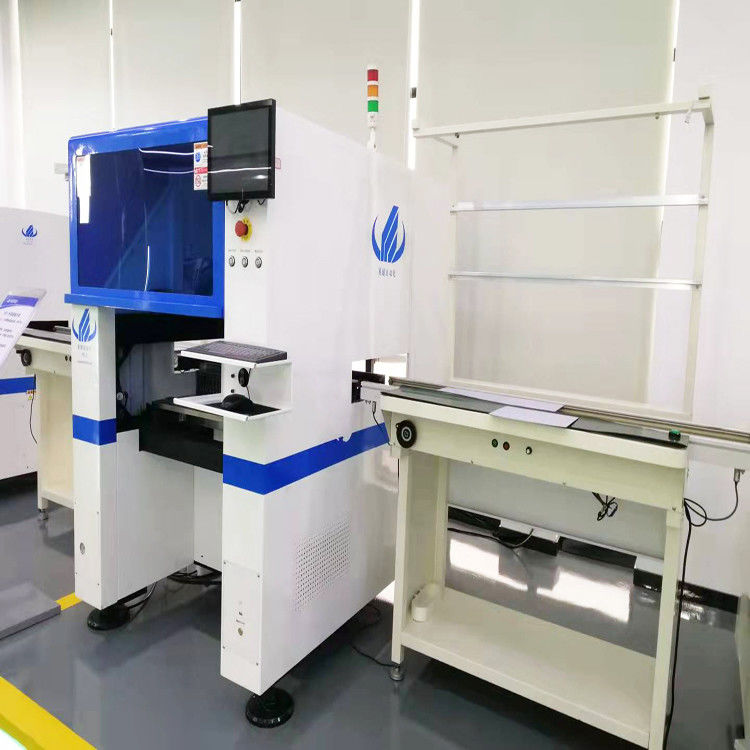

10 Head 40000 CPH SMT Mounting Machine Single Module LED Marking
40000CPH Single Module magnetic linear motor pick and place machine
Product Description
Simple structure in linear type ,easy in installation and maintation
Aopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Mounting compents: LED chip, capacitors, resistors, IC, shaped components. etc.
Auto optimization after cordinates generated, etc.
Mounting mode : Group picking and separately placing,
| Model | RT-1 |
| PCB length width | if＜0.6mm need jig |
| PCB thickness | pneumatic |
| PCB clamping | Group picking and separately placing ;separately picking and separately placing |
| system | windows 7 |
| vision system | 2PCS |
| No.of camera | accurate image recognition |
| vision alignment, mark correction | |
| ±0.04mm | |
| repeat mounting precision | standard:≤15mm(height customizable) |
| mounting height | 40000CPH |
| mounting speed | LED chip, capacitors,resistor,shaped components, etc. |
Our company has 50000 square meters industrial park, over 10 years experience in SMT machines , leading manufacturer of high-speed pick and place machine in China. Own R&D department ensure the software and machine has best program and can provide promptly service to you.
We have different kinds of machine, suitable for bulb, panel light, down-light, streetlight, flexible strip, display, home circuit board, power driver, lens, etc.

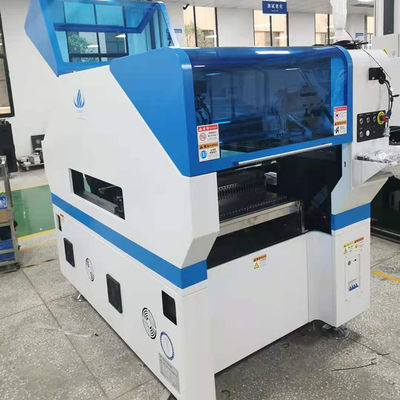

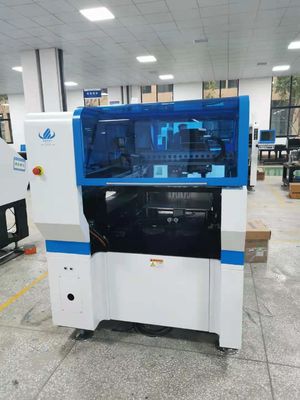

SMT machine SHOW:
Exihibition SHOW:
We have exihibition in Domestic and forigen. meet many customers. and provide suitable solution for every customer. the below photos for you review:
Certification of appeciation:
our company have many certification ensure the high quality machine for you. including 112 practical patent, 12 softwear copyrights, 9 invention patent, professional R&D team provide suitable solution for every customer.
FAQ:
| Question | Answer |
| This machine suitable for which prduct? | LED bulb, tube, drive, panel light, lens, electric board etc. |
| This is the first time I use this kind of machine, is it easy to operate? | Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. |
| Do you have office in oversea? | Yes, we have 3 local(Delhi, Mumbai and Daman) engineer in India, Turkey, Egypt. |
| Do you inspect the finished products? | Yes, each step of production and finished products will be came out inspection by QC department before shipping. |
| Do you sell nozzles and spares? | Yes, we do sell nozzles and spares. If you need any spars, just let us know. |
